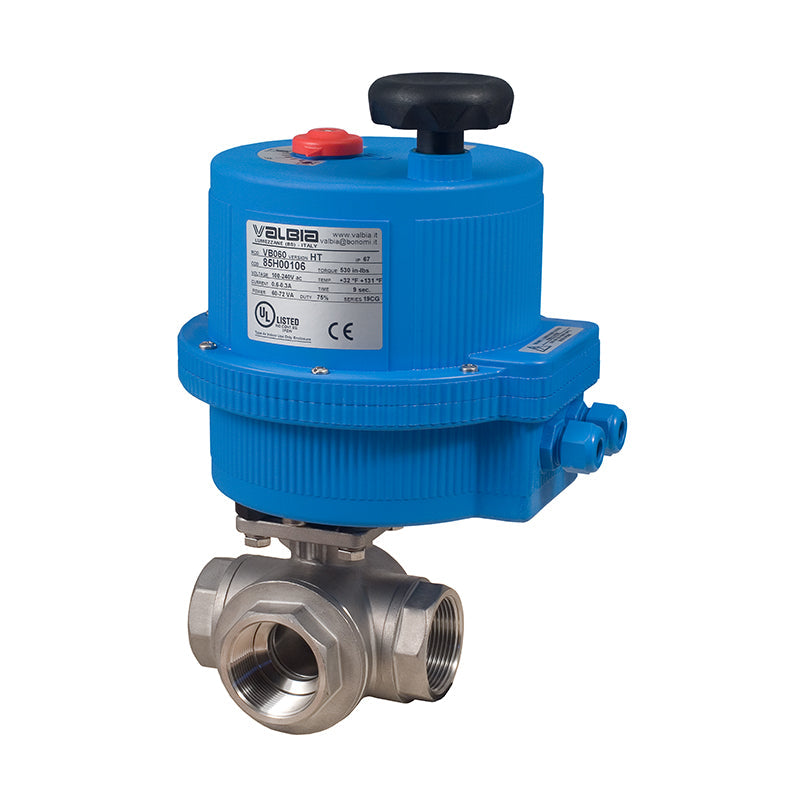

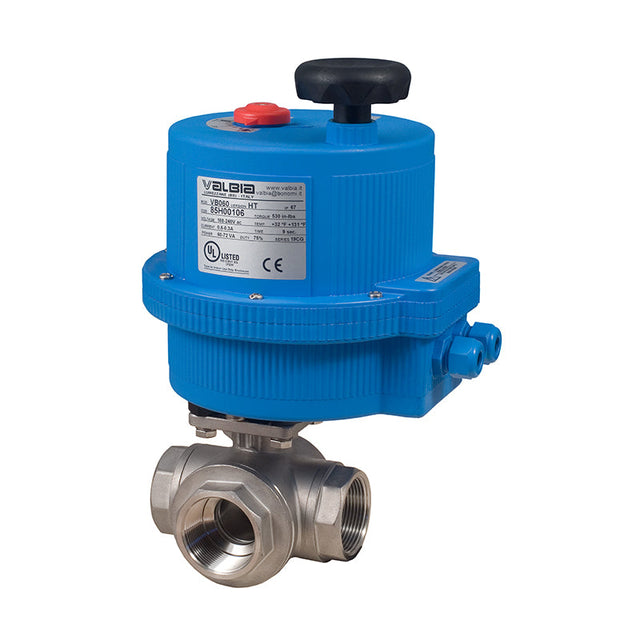

BONOMI 8E072 WITH SERIES 966N 3-WAY FULL L-PORT ST. ST. BODY NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

Elevate your system with the cutting-edge BONOMI 8E072 Series 966N: Experience an enhanced level of performance by upgrading to a Direct Mount L-Ported 3-Way Stainless Steel NPT Full Port Ball Valve paired with a reliable Plastic Valbia Electric Actuator. Designed to excel in Water, Gas, and Oil applications, this upgrade promises improved efficiency. Delve into its specifications: Crafted from CF8M Stainless Steel, the Full L-Port Valve spans from 1/4” to 2”, featuring ISO 5211 pad and square stem. With impressive pressure ratings of up to 1000psi (1/4” to 1”) and 800 psi (1-1/4” to 2”), plus a temperature range of -4°F to 450°F, it ensures durability and performance. The Valve is equipped with a blow-out proof stem, self-adjusting stem packing, and has been electronically tested at 80 Psi in both open and closed positions. The Actuator offers NEMA 4, 4x Housing, CSA and UL approvals, available in 12V/24V AC/DC and 100-240VA AC Models. Featuring ISO dual patterns and an impact-resistant IP67 Technopolymer housing, it operates smoothly between -4°F to 131°F. The PG11 Electrical connection, along with the optional 1/2" conduit, adds versatility to the upgrade. Elevate your system's capabilities with the BONOMI 8E072 Series 966N - an upgrade that amplifies efficiency and performance. Don't miss out on this chance to boost your system's potential. Upgrade today and experience the transformation!
