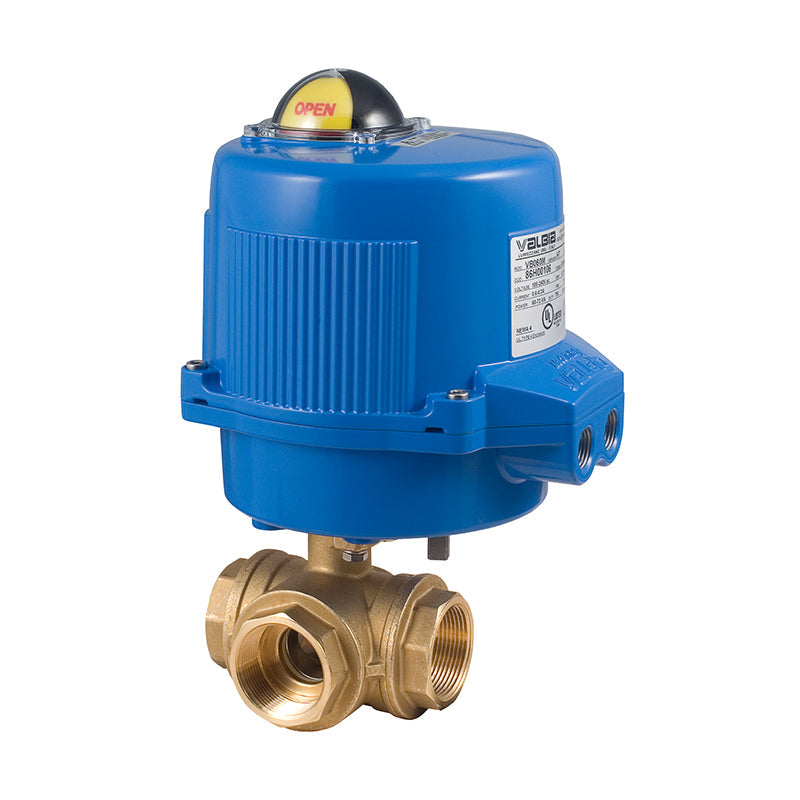

BONOMI M8E065 WITH SERIES RB 355N 3-WAY BRASS NPT BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR

Experience unmatched performance with the BONOMI M8E065, a Brass 3-way T-Port NPT ball valve matched with the high-performance Metal Valbia electric actuator. Elevate your operations with this assembly designed for non-potable water, gas, and oil applications. Featuring a direct mount T-Port design and standard sizes from 1/4” to 3”, this valve offers ISO 5211 pad and square stem compatibility, a pressure rating up to 400 WOG, and a temperature range spanning from -4°F to 366°F. Its four-seat design, blow-out proof stem, and chrome plated brass ball assure top-notch performance. The valve's low torque design, double o-ring stem seal, and 100% electronic testing at 80 Psi ensure exceptional reliability. Equipped with dual voltages, CSA and UL approvals, and model options for 24V AC/DC and 100-240V AC inputs, the actuator thrives with a 75% duty cycle, anti-condensation heater, Die Cast Aluminum housing, and NEMA 4 housing, performing from -4°F to 131°F. With two auxiliary switches and a torque limiter standard, this exceptional duo encapsulates innovation and resilience for industrial environments – order now and experience excellence firsthand.
