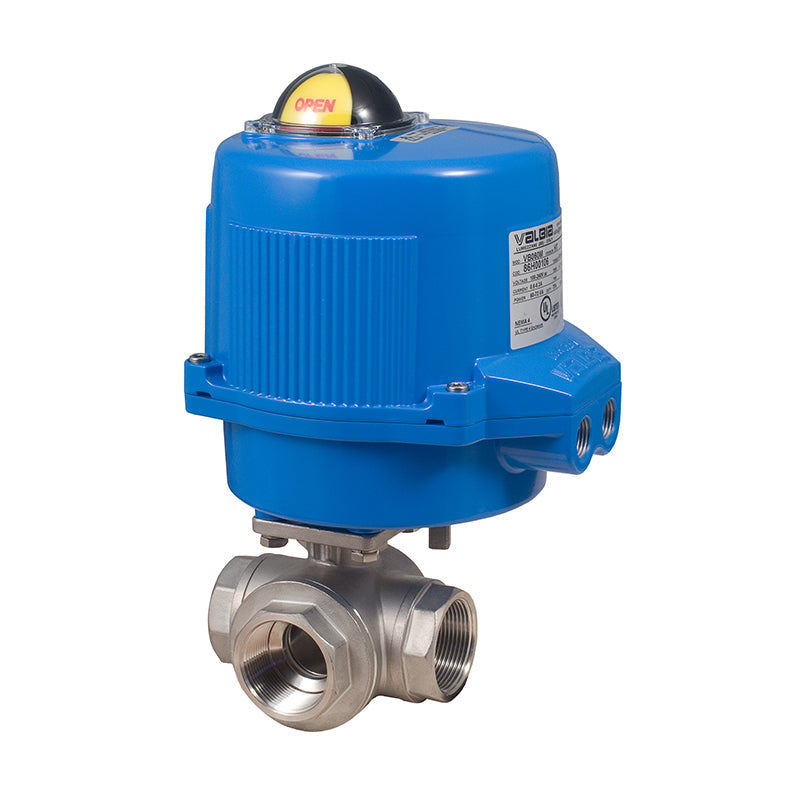

BONOMI M8E072 WITH SERIES 966N 3-WAY FULL L-PORT ST. ST. BODY NPT BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR

Upgrade your system with the advanced BONOMI M8E072 Series 966N: Elevate your operations by combining a Direct Mount L-Ported 3-Way Stainless Steel NPT Full Port Ball Valve with a reliable Metal Valbia Electric Actuator. Designed for Water, Gas, and Oil applications, this upgrade enhances performance. Dive into its specifications: Crafted from CF8M Stainless Steel, the Full L-Port Valve ranges from 1/4” to 2” and features ISO 5211 pad and square stem. With pressure ratings of up to 1000psi (1/4” to 1”) and 800 psi (1-1/4” to 2”), and a temperature range of -4°F to 450°F, it ensures durability. The Valve boasts a blow-out proof stem, self-adjusting stem packing, and is 100% electronically tested at 80 Psi in open and closed positions. The Actuator boasts dual voltages, CSA and UL approvals, with 24V AC/DC and 100-240V AC Models available. Featuring ISO 5211 Mounting, a 75% Duty Cycle, and an anti-condensation heater, it operates smoothly between -4°F to 131°F. Housed in a high-strength Die Cast Aluminum housing, it also comes with a NEMA 4 Housing, Two auxiliary switches standard, and a Torque limiter standard. Elevate your system's capabilities with the BONOMI M8E072 Series 966N - an upgrade that maximizes efficiency and performance. Don't miss out on this opportunity to enhance your system's potential. Upgrade today and experience the difference!
