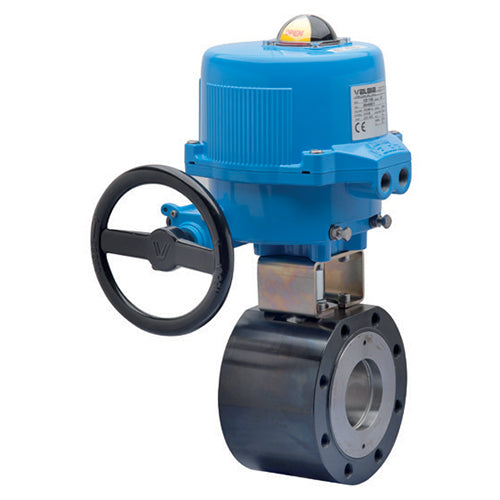

BONOMI M8E720791 WITH SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150

Experience the ultimate upgrade with the BONOMI M8E720791 Series 720791: Unleash power and precision with a 2-Way ANSI 150 Carbon Steel Wafer-style Flanged Ball Valve enhanced by a robust Metal Valbia Electric Actuator. Designed for Water, Gas, and Oil applications, this upgrade redefines performance. Dive into its features: Purpose-built for steam service, Carbon Steel ANSI 150 Full port, sizes ranging from 1/2” to 6”, and an operating range from -4°F to 366°F. Count on reliability with a blow-out proof stem design, R.P.T.F.E. seats, packing, and thrust washer, all within a space-saving layout. TUV T.A. Luft approval and ANSI B16.34 design compliance add credibility, along with an ISO 5211 mounting pad and double “D” stem. On the actuator front, anticipate excellence with dual voltages, CSA, and UL approvals, available in 24V AC/DC and 100-240V AC Models. This actuator excels with ISO 5211 Mounting, a 75% Duty Cycle, anti-condensation heater, and high-strength Die Cast Aluminum housing, effortlessly functioning from -4°F to 131°F. The NEMA 4 Housing, two auxiliary switches, and standard torque limiter ensure unmatched efficiency. Elevate your system with the BONOMI M8E720791 Series 720791 - the ultimate upgrade that amplifies performance. Upgrade your future today!

Assembly Description

BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-002, 24V AC/DC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-003, 100-240V AC, ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-012, 24V AC/DC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-013, 100-240V AC, ON/OFF WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-022, 24V AC/DC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-023, 100-240V AC, MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-042, 24V AC/DC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB030M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB060M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB110M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
BONOMI M8E720791 WITH SERIES 720791, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA VB190M-043, 100-240V AC, MODULATING 0-10VDC/4-20 mA WITH FAIL-SAFE BATTERY BACKUP ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 406 °F
Pressure Rating

285 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Aluminum
