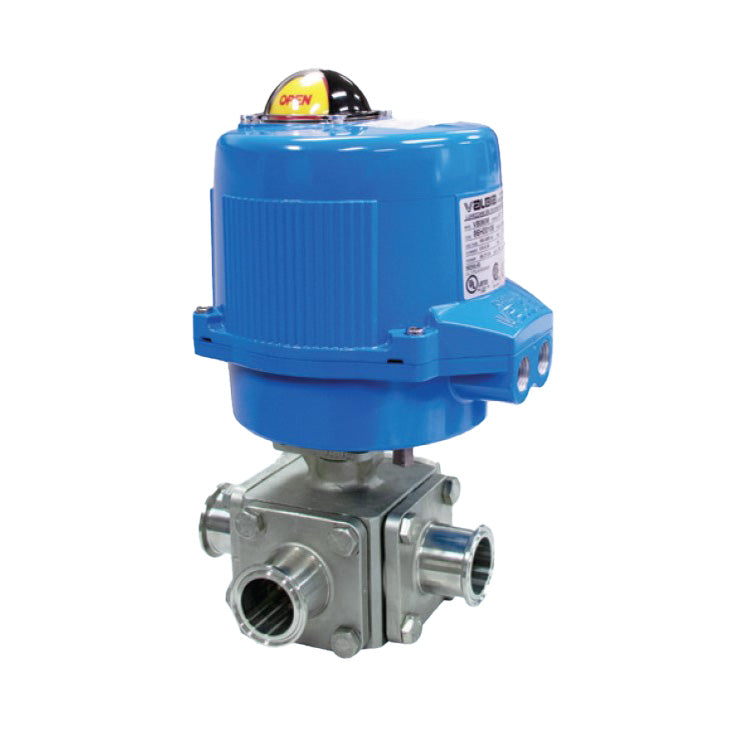

BONOMI ME97L-STC WITH SERIES 97L-STC 3-WAY FULL L-PORT ST. ST. BLOCK BODY SANITARY CONNECTION BALL VALVE AND METAL VALBIA ELECTRIC ACTUATOR

Elevate performance with BONOMI ME97L-STC coupled with Series 97L-STC: a potent blend of a 3-Way Full L-Port Stainless Steel Block Body Ball Valve, featuring Sanitary Tri-Clamp connections, and a robust Metal Valbia Electric Actuator. Seize control of Water, Gas, and Oil applications with confidence. This Assembly boasts a Direct Mount L-Ported design, fusing a stainless steel block body with Sanitary Tri-Clamp ends alongside a Metal Electric Actuator. Sizing options range from 1/2” to 4”, catering to diverse needs. Harness power with pressure ratings: 1000 psi (1/2” to 1”), 800 psi (1-1/2” to 2”), 600 psi (2-1/2” to 3”), and 300 psi (4”). Tackle temperature variations within -4°F to 366°F with ease. Enjoy top-tier performance owing to live loaded stem packing, R.P.T.F.E. seats & seals, and stainless steel external components. The ISO 5211 mounting pad with a square stem ensures streamlined installation. The accompanying Actuator shines with dual voltages, CSA/UL approvals, and an array of models: 24V AC/DC and 100-240V AC. With ISO 5211 Mounting, a 75% Duty Cycle, an Anti-condensation heater, and a Die Cast Aluminum housing, this Actuator is a powerhouse. It thrives in environments spanning -4°F to 131°F, complemented by NEMA 4 Housing and standard Two auxiliary switches. A Torque limiter standard adds an extra layer of assurance. Act now to experience the pinnacle of performance. Harness excellence with BONOMI ME97L-STC and Series 97L-STC. Upgrade your system now!
