BONOMI | SKU:
EAX130-002

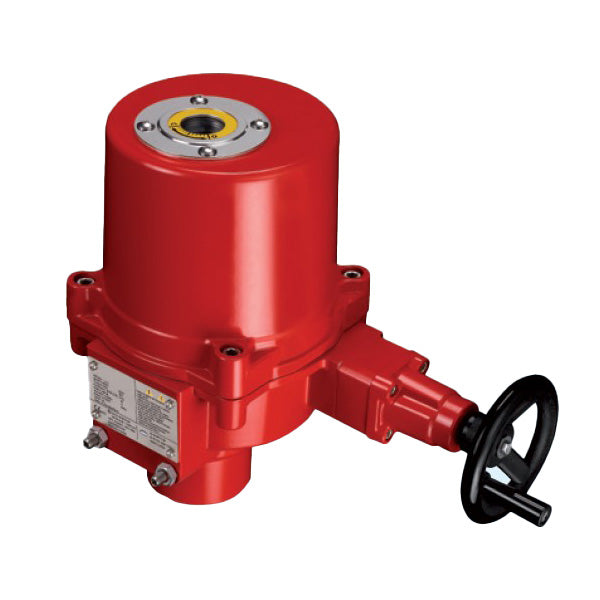

BONOMI EAX130 CSA APPROVED EXPLOSION-PROOF METAL ELECTRIC ACTUATOR WITH HANDWHEEL
$3,66120 USD
$4,40700
Unit price
/
Unavailable
Shipping calculated at checkout.
17% off
17% off
17% off
17% off
24% off
24% off
BONOMI EAX130 CSA APPROVED EXPLOSION-PROOF METAL ELECTRIC ACTUATOR WITH HANDWHEEL - 24 VAC/VDC / ON/OFF / FAIL IN PLACE
Shipping Weight:
24.25 lb
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI EAX130 CSA APPROVED EXPLOSION-PROOF METAL ELECTRIC ACTUATOR ...
From
$3,66120 USD
$4,40700
Unit price
/
Unavailable
The Bonomi EAX series explosion-proof rugged electric actuator is ideally suited for all hazardous conditions where an ignitable concentration of flammable gasses, liquids, combustible fibers or dust are likely to exist.
The EAX series is certified for these areas under Class I, Division 1, Class II, Division I under CSA. This series meets NEMA 4x, 7, 8 and 9.
The EAX series also standardly features an extra heavy-duty housing, two extra limit switches, a heater and thermostat, ISO 5211 bolt patterns, double square female drive, a thermal overload switch, a manual override, visual indicator, and 1/2” conduit connections. A self locking gear train eliminates the need for a motor break.
The EAX series is certified for these areas under Class I, Division 1, Class II, Division I under CSA. This series meets NEMA 4x, 7, 8 and 9.
The EAX series also standardly features an extra heavy-duty housing, two extra limit switches, a heater and thermostat, ISO 5211 bolt patterns, double square female drive, a thermal overload switch, a manual override, visual indicator, and 1/2” conduit connections. A self locking gear train eliminates the need for a motor break.
-
Data Sheet
-
Actuator Housing Material
-
Explosion Proof
