BONOMI | SKU: EXM8E68F400-002-1/2

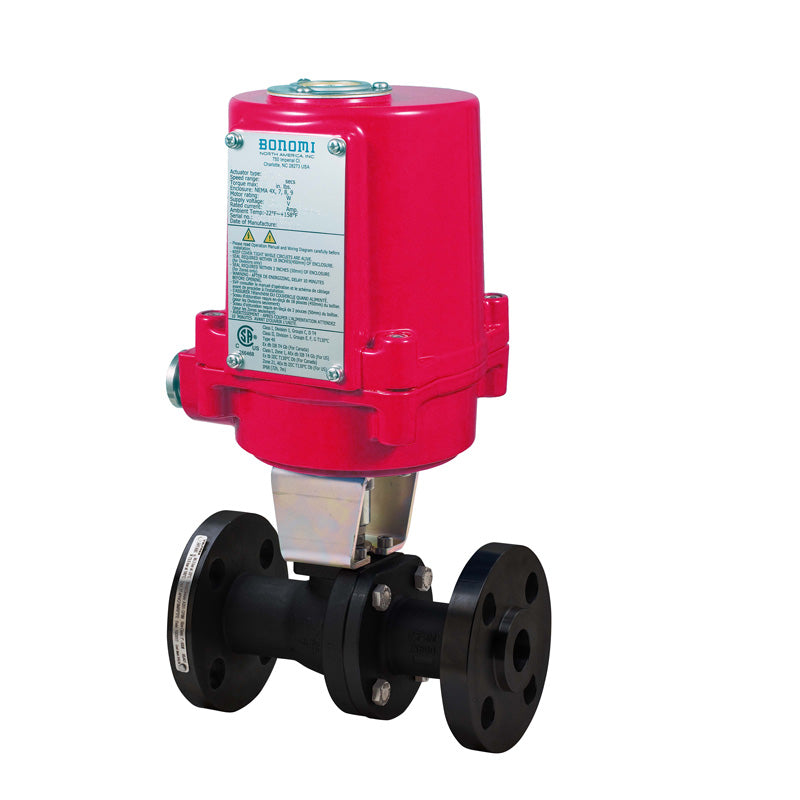

BONOMI EXM8E68F400 WITH SERIES 68F400 2-WAY CARBON STEEL ANSI CLASS 600 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR

$2,118⁴⁶ USD ~~$2,550⁰⁰~~

Shipping calculated at checkout.

Size

1/2" ANSI 600 FLANGED SPLIT BODY 3/4" ANSI 600 FLANGED SPLIT BODY 1" ANSI 600 FLANGED SPLIT BODY 1-1/2" ANSI 600 FLANGED SPLIT BODY 2" ANSI 600 FLANGED SPLIT BODY

Voltage

24V AC/DC 100-240V AC

Actuator Action

ON/OFF FAIL IN PLACE MODULATING 0-10VDC/4-20 mA FAIL IN PLACE

Product variants

BONOMI EXM8E68F400 WITH SERIES 68F400 2-WAY CARBON STEEL ANSI CLASS 600 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR - 1/2" ANSI 600 FLANGED SPLIT BODY / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:

13.35 lb

Delivery and Shipping

Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.

Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

The BONOMI EXM8E68F400 is a 2-way, ANSI 600 Carbon Steel API 608 Split-Body Style Flanged Ball Valve with Explosion Proof Electric Actuator. It is suitable for vacuum, water, gas, and oil applications. The valve features a full port, sizes 1/2” to 2”, and is 100% tested according to API 598 standards. It also has a blow out proof stem, locking handle, fire safe design, R.T.F.E. seats, packing and thrust washer, and an antistatic device.

The actuator is NEMA 4x, 7, 8 & 9 (CSA Approved) and has an enclosure that conforms to IP68 with explosion-protected performance and 1/2” FNPT conduit connection. It has a temperature range of 22°F to 158°F, a clutch-less manual override, thermostatically controlled anti-condensation heater for working conditions, self-locking gear system, and a ± 5° mechanical stop on 0° and 90°. It also has a continuous mechanical position indicator, built-in thermal overload protection to prevent motor burnout, and 2 auxiliary SPDT switches.

Assembly Description

BONOMI EXM8E68F400 WITH SERIES 68F400, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E68F400 WITH SERIES 68F400, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 600, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

1480 PSI
Valve Body Type

SPLIT BODY
Approvals

API 608
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 600 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Aluminum
