BONOMI | SKU: EXM8E766001-002-1

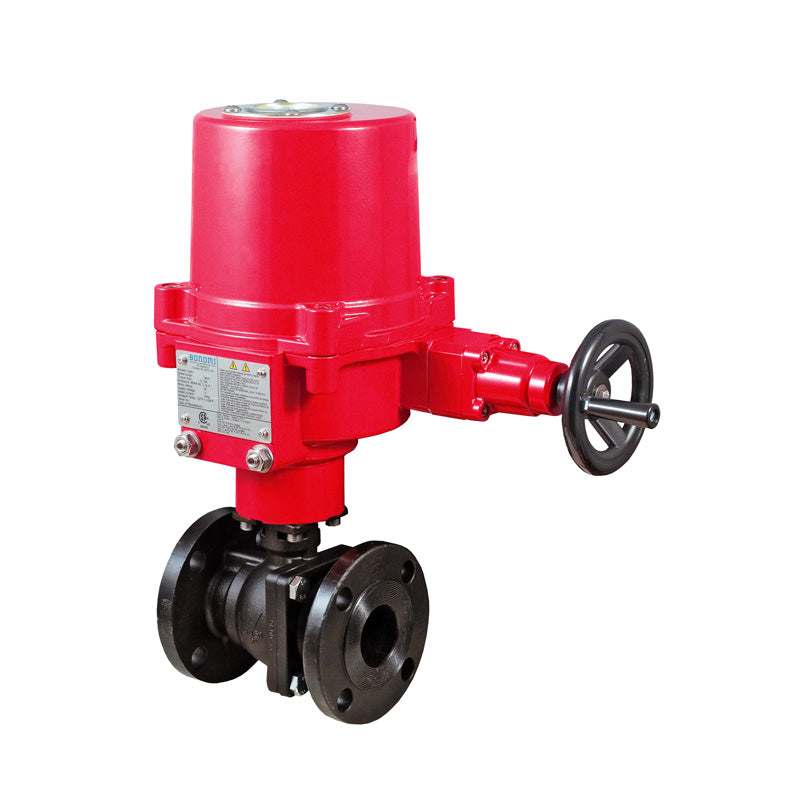

BONOMI EXM8E766001 WITH SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR

$1,717²⁰ USD ~~$2,067⁰⁰~~

Shipping calculated at checkout.

Size

1" ANSI 300 FLANGED SPLIT BODY 1-1/2" ANSI 300 FLANGED SPLIT BODY 2" ANSI 300 FLANGED SPLIT BODY 3" ANSI 300 FLANGED SPLIT BODY 4" ANSI 300 FLANGED SPLIT BODY

Voltage

24V AC/DC 100-240V AC

Actuator Action

ON/OFF FAIL IN PLACE MODULATING 0-10VDC/4-20 mA FAIL IN PLACE

Product variants

BONOMI EXM8E766001 WITH SERIES 766001 2-WAY CARBON STEEL ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR - 1" ANSI 300 FLANGED SPLIT BODY / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:

12.84 lb

Delivery and Shipping

Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.

Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

The BONOMI EXM8E766001 is a reliable 2-way carbon steel ANSI Class 150 fire safe design flanged split body ball valve and VALBIA CSA approved explosion proof electric actuator. This assembly is designed for direct mount applications and is suitable for water, gas, and oil.

The valve features a carbon steel body, ANSI class 150 flanged connection, full port sizes 1” to 4”, blow-out proof stem, adjustable stem packing, P.T.F.E. seats, packing and thrust washer, and FKM Viton O-rings. It is fire safe certified to API 607 6th edition and is 100% tested.

The actuator is NEMA 4x, 7, 8 & 9 (CSA Approved) and features an enclosure that conforms to IP68 with explosion-protected performance and 1/2” FNPT conduit connection. It has a temperature range of 22°F to 158°F, clutch-less manual override, thermostatically controlled anti-condensation heater, self-locking gear system, and built-in thermal overload protection.

Assembly Description

BONOMI EXM8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX035-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 1-1/2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 2", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 3", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX080-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXM8E766001 WITH SERIES 766001, 4", DIRECT MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND METAL VALBIA EAX130-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

285 PSI
Valve Body Type

SPLIT BODY
Approvals

FIRE SAFE CERTIFIED TO API 607-6TH ED.
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Aluminum
