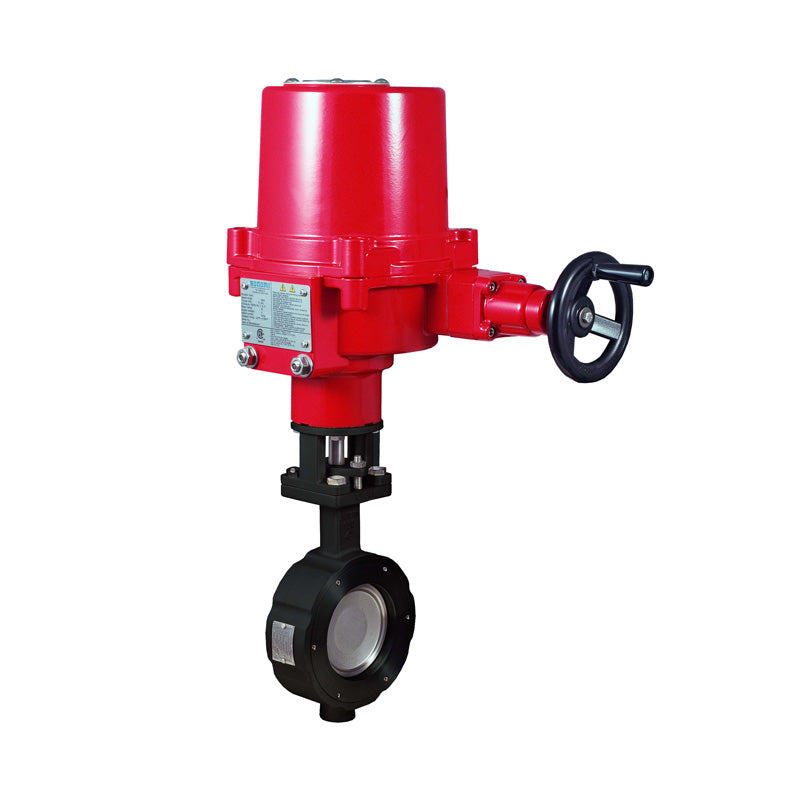

BONOMI EXME8100 WITH SERIES 8100 CARBON STEEL BODY ST. ST. DISC PTFE S

The BONOMI EXME8100 is an innovative assembly of a 2-Way, Carbon Steel Wafer-style High Performance Butterfly Valve with Ex-Proof Electric Actuator. It is designed for applications such as water, gas, and oil. The valve's specifications include a Carbon steel ANSI 150 Wafer style, sizes 2` to 12`, ISO 5211 direct mounting pad/square stem, compact design, easy access to packing, replaceable seat design, multiple V-ring stem packing, reliable and consistent torque, R.P.T.F.E. seats, and metal seats upon request. The actutor's specifications include NEMA 4x, 7, 8 & 9 (CSA Approved), enclosure conforms to IP68 with explosion-protected performance and 1/2” FNPT conduit connection, temperature range: 22°F to 158°F, clutch-less manual override, thermostatically controlled anti-condensation heater for working conditions, self-locking gear system, available in both ON/OFF (00*) or 4~20 mA MODULATING (02*), 30% Duty Cycle (ON/OFF) and 75% Duty Cycle (MODULATING), ISO 5211 Mounting Bolt Pattern and DIN 3337 Double Square Drive, ± 5° Mechanical stop on 0° and 90°, continuous mechanical position indicator, built-in thermal overload protection prevents motor burnout, and 2 auxiliary SPDT switches.

The BONOMI EXME8100 is the perfect choice for those looking for a reliable and efficient valve and actuator assembly. With its high performance butterfly valve and explosion-proof electric actuator, it is sure to meet all of your needs.

Assembly Description

BONOMI EXME8100 WITH SERIES 8100, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME8100 WITH SERIES 8100, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

HIGH-PERFORMANCE BUTTERFLY VALVE
Temperature Rating

-20 °F to 475 °F
Pressure Rating

285 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Wafer Style Flanged
Body Material

CARBON STEEL
Actuator Housing Material

Aluminum
