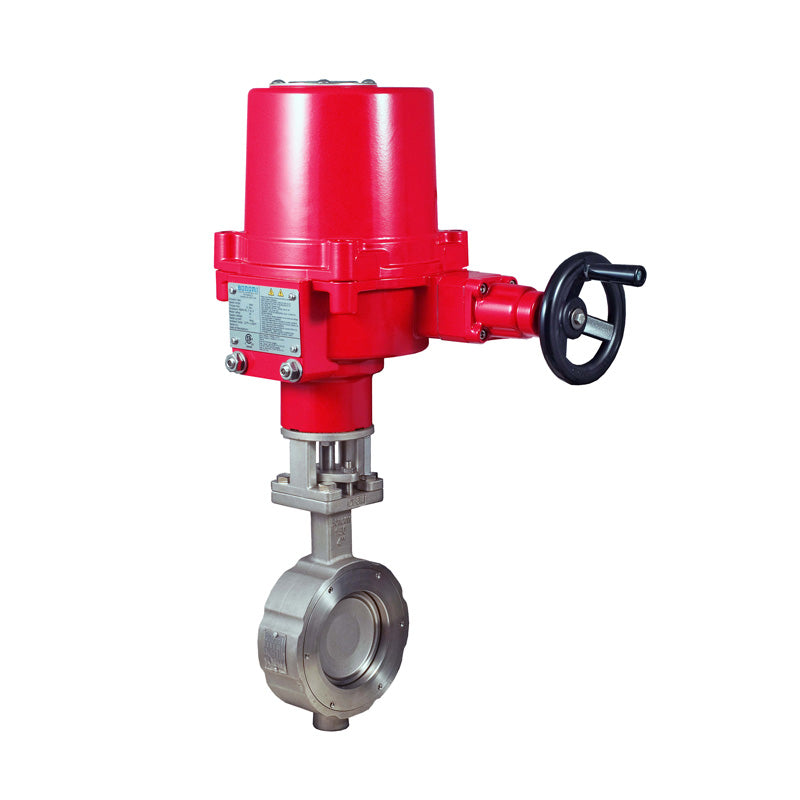

BONOMI EXME9320 WITH SERIES 9320 ST. ST. BODY ST. ST. DISC METAL SEATE

Discover BONOMI EXME9320 WITH SERIES 9320 ST. ST. BODY ST. ST. DISC METAL SEATED SEATS WAFER STYLE ANSI CLASS 300 HP BUTTERFLY VALVE AND VALBIA CSA APPROVED EXPLOSION PROOF ELECTRIC ACTUATOR our top-of-the-line 2-Way Stainless Steel Lug-style Butterfly Valve, expertly engineered for exceptional performance in demanding environments. Equipped with an Ex-Proof Electric Actuator, this valve excels in applications involving Hot Water, Steam, Oil, and Gases. Crafted with precision, the valve boasts stainless steel ANSI 300 Wafer style construction, ranging in sizes from 2' to 12'. Its ISO 5211 direct mounting pad and square stem facilitate easy installation, while the compact design ensures convenient access to packing. The valve's replaceable seat design, along with multiple V-ring stem packing, guarantees reliability and consistent torque. With metal seats rated at 150 WSP, and a temperature range spanning from -20°F to 475°F, this valve is built to withstand diverse conditions.

Complementing the valve's prowess is the Ex-Proof Electric Actuator. Engineered for excellence, it features CSA-approved NEMA 4x, 7, 8 & 9 enclosures, offering explosion-protected performance. The actuator's robust design ensures it thrives in temperatures ranging from 22°F to 158°F. With features like Clutch-less Manual Override, Thermostatically controlled anti-condensation heater, and a self-locking gear system, the actuator offers unparalleled functionality. Whether you require ON/OFF (00*) or 4~20 mA MODULATING (02*) capabilities, the actuator delivers with a 30% Duty Cycle (ON/OFF) and 75% Duty Cycle (MODULATING). Its ISO 5211 Mounting Bolt Pattern and DIN 3337 Double Square Drive make it versatile, while the built-in thermal overload protection and auxiliary SPDT switches ensure safe and reliable operation. This is the ultimate combination of precision engineering and cutting-edge technology for your industrial needs.

Assembly Description

BONOMI EXME9320 WITH SERIES 9320, 2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2-1/2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 3", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 4", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 5", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 6", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 8", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 10", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX575-002, 24V AC/DC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2-1/2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 3", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 4", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 5", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 6", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 8", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 10", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX575-003, 100-240V AC CSA APPROVED EXPLOSION PROOF ON/OFF FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2-1/2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 3", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 4", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 5", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 6", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 8", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 10", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX575-022, 24V AC/DC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 2-1/2", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 3", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX045-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 4", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX080-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 5", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX130-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 6", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 8", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX450-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
BONOMI EXME9320 WITH SERIES 9320, 10", DIRECT MOUNT, ST. ST. BODY, METAL SEATED SEATS, ANSI CLASS 300 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND METAL VALBIA EAX575-023, 100-240V AC CSA APPROVED EXPLOSION PROOF MODULATING 0-10VDC/4-20 mA FAIL IN PLACE ELECTRIC ACTUATOR
Data Sheet

Download
Valve Type

HIGH-PERFORMANCE BUTTERFLY VALVE
Temperature Rating

-20 °F to 475 °F
Pressure Rating

720 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Lug Style Flanged
Body Material

STAINLESS STEEL
Actuator Housing Material

Aluminum
