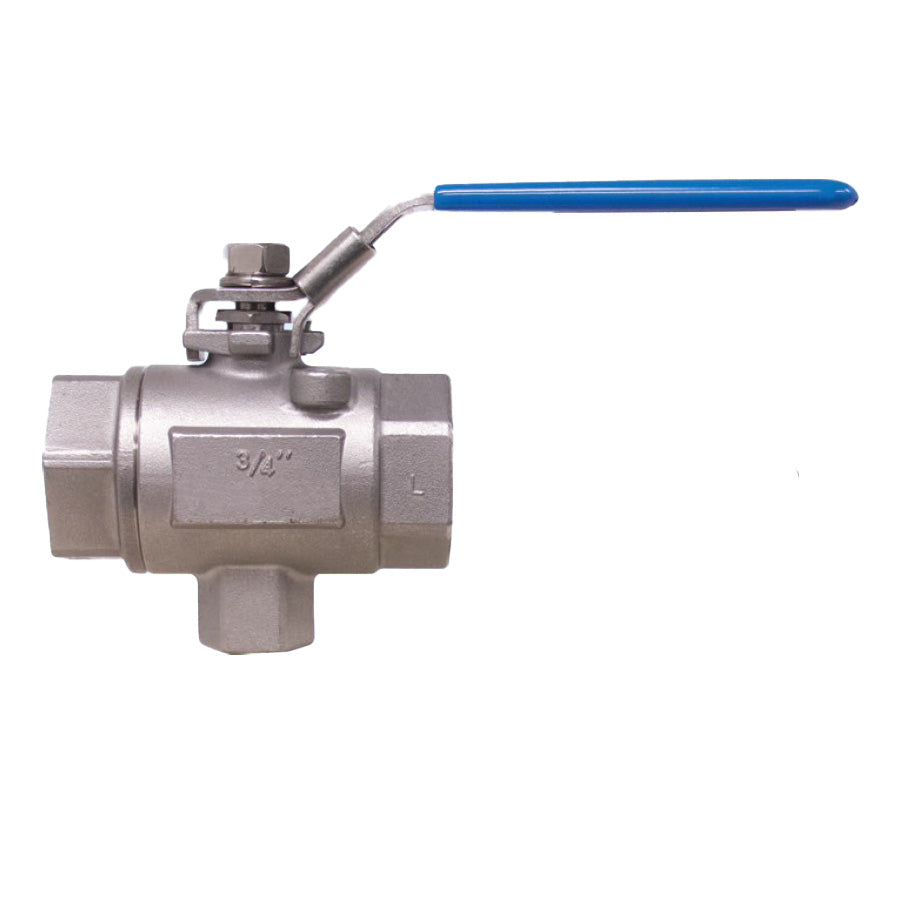

BONOMI SERIES 511SL FULL PORT SAFETY EXHAUST STAINLESS STEEL BALL VALVE, FNPT THREADED
BONOMI SERIES 511SL FULL PORT SAFETY EXHAUST STAINLESS STEEL BALL VALVE, FNPT THREADED - 1/4" NPT
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
*** Due to high order volume, orders may require additional business days to process.
Order processing time for manual valves and actuators is 5-7 business days + Transit time.
Most valves assemblies have a processing time of 10-15 days + transit time.
Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.
All processing times are subject to availability.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 511SL FULL PORT SAFETY EXHAUST STAINLESS STEEL BALL V...
Exhaust Stainless steel Ball Valve with Bleed Hole and Latch Lock Handle; Pressure rating 400 psi air service; Temperature range: -20°F to 450°F; Blow out proof stem; P.T.F.E. seats, seals and thrust washer; Adjustable stem packing; 100% electronically tested in the open position at 80 psi; Valve to be used in fully open or fully closed position; With reference to OSHA requirement; ANSI B1.20.1 connections;
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
