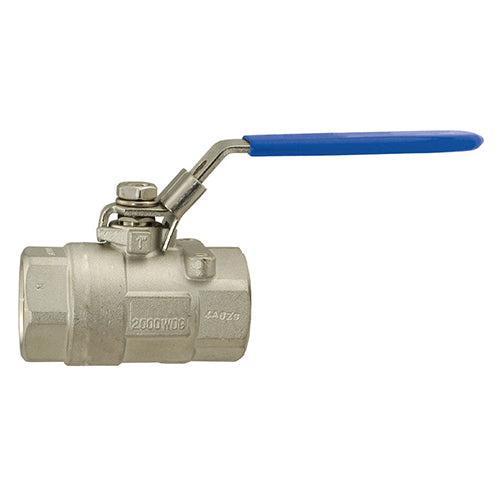

BONOMI SERIES 700LL FULL PORT STAINLESS STEEL BALL VALVE, FNPT THREADED, W/LOCKING DEVICE
BONOMI SERIES 700LL FULL PORT STAINLESS STEEL BALL VALVE, FNPT THREADED, W/LOCKING DEVICE - 1/4" NPT
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
*** Due to high order volume, orders may require additional business days to process.
Order processing time for manual valves and actuators is 5-7 business days + Transit time.
Most valves assemblies have a processing time of 10-15 days + transit time.
Orders for single items and small valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the following day.
All processing times are subject to availability.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 700LL FULL PORT STAINLESS STEEL BALL VALVE, FNPT THRE...
2-piece Stainless Steel body ball valve; Full port, sizes 1/4” to 2”; Self adjusting stem packing; Blow out proof stem design; 100% air tested under water at 80 psi; Pressure rating 1/4” to 1” 2000 psi, 1-1/4” to 2” 1000 psi - 150 psi steam; Temperature range -4°F to 450°F; Mounting pad for actuator; Thermal relief hole in stem slot
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
