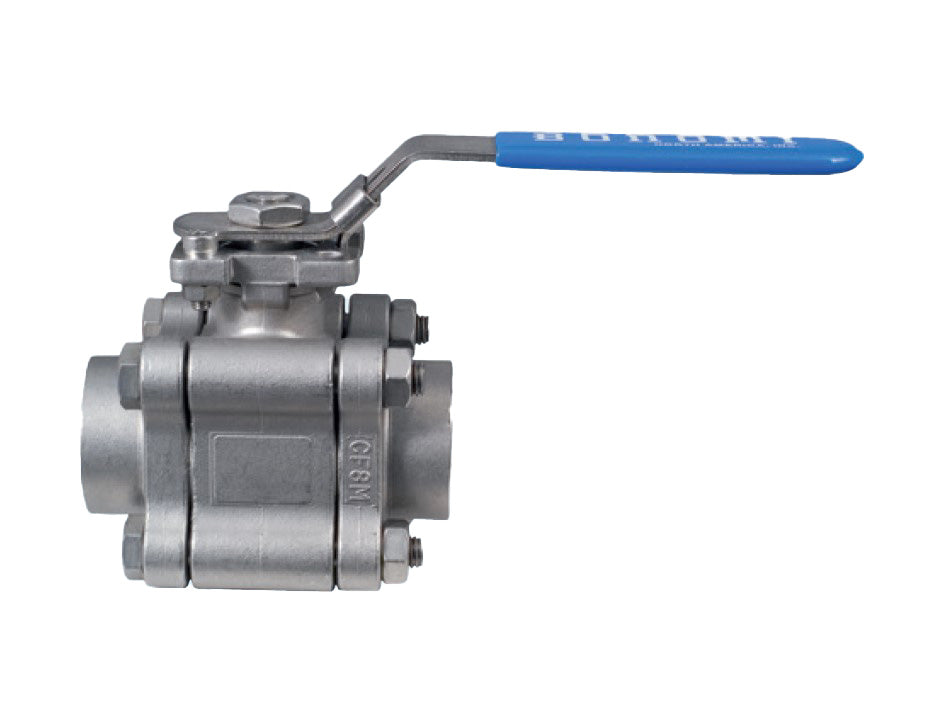

BONOMI SERIES 740LL FULL PORT HIGH PERFORMANCE 3 PC. STAINLESS STEEL BALL VALVE WITH PEEK SEATS W/LOCKING LEVER AND ISO 5211 MOUNTING PAD AND NPT ENDS
BONOMI SERIES 740LL FULL PORT HIGH PERFORMANCE 3 PC. STAINLESS STEEL BALL VALVE WITH PEEK SEATS W/LOCKING LEVER AND ISO 5211 MOUNTING PAD AND NPT ENDS - 1/4" NPT
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 740LL FULL PORT HIGH PERFORMANCE 3 PC. STAINLESS STEE...
3-piece Stainiless Steel body ball valve; NPT; Class 900 sizes 1/4” to 2”, Class 600 sizes 2-1/2” to 4”; Stainless steel-2160 psi (1/4” to 2”), 1500 psi (2-1/2” to 4”); ISO 5211 mounting pad w/ square stem; PEEK ball seats; Standard latch locking handle; Conforms to ANSI 16.34, ANSI B1.20.1 thread depths, NACE MR0175; Fire Safe to API 607-6th edition; Grounded ball and stem; Standard 316 stainless steel ball and stem; Temperature range: +150° F to 500° F; Working steam pressure to 250 psi
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
