BONOMI  |  SKU: DA550P-2

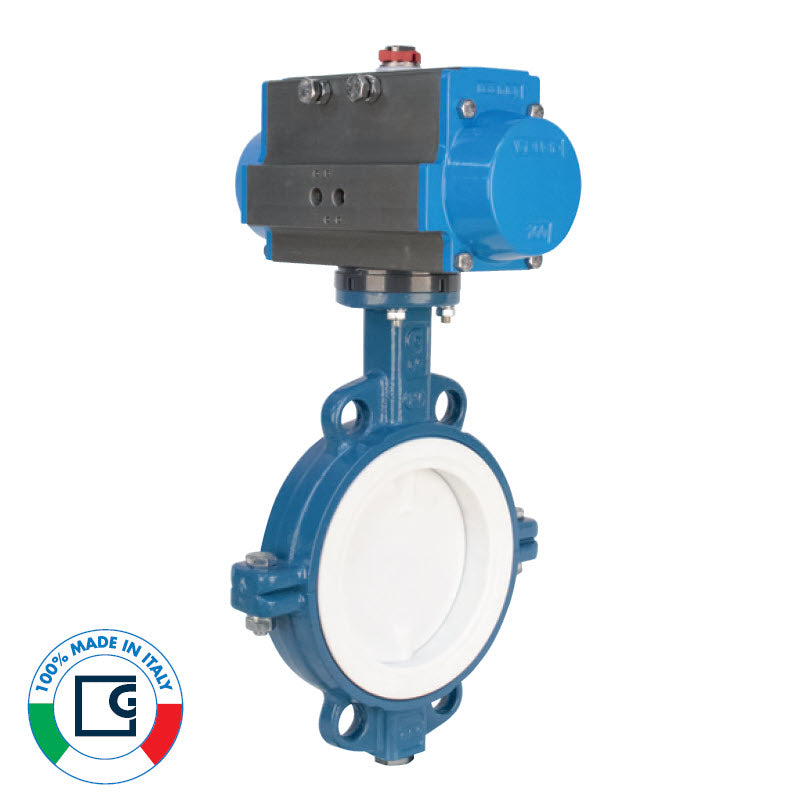

BONOMI GHIBSON SERIES 550P FDA APPROVED PTFE COATED SS DISC EPOXY COATED DUCTILE IRON WAFER-STYLE BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR

$88394 USD $1,06400
Shipping calculated at checkout.
Size
Actuator Action

BONOMI GHIBSON SERIES 550P FDA APPROVED PTFE COATED SS DISC EPOXY COATED DUCTILE IRON WAFER-STYLE BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR - 2" WAFER / DOUBLE ACTING

Shipping Weight:
15.12 lb

Delivery and Shipping

Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.

Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.

We will notify you if lead time is extended.

Contact us if you have any questions.

Please contact us if you need assistance selecting your valve assembly.

Bonomi Ghibson Series 550P: The Ultimate Butterfly Valve Assembly

Introducing the Bonomi Ghibson DA550P or SR550P valve assembly, a revolutionary product that combines the best of both worlds - PTFE coated SS disc wafer butterfly valves and Valbia double acting or spring return pneumatic actuator. This unique assembly is designed to provide unparalleled performance and durability, making it the top choice for industrial applications.

The valve body is made of epoxy coated ductile iron (EN-GJS 400-15), ensuring maximum strength and corrosion resistance. With sizes ranging from 2” to 12”, the 550P valve assembly is suitable for a wide range of applications. It also features an ISO 5211 direct mounting pad/square stem, making installation quick and easy.

The PTFE seat can withstand temperatures from 70°F to +392°F, making it ideal for high temperature applications. The valve also meets API 609 face to face flange standards and has a floating dual shaft disc design, ensuring smooth operation and minimal leakage.

With a pressure rating of 250 psi for sizes 2”- 8” and 150 psi for sizes 10”-12”, the 550P valve assembly is built to handle even the most demanding environments. It is also MSS SP 67 compliant, ensuring it meets the highest industry standards.

One of the most unique features of the Bonomi Ghibson Series 550P is the absence of pins in the disc, eliminating potential leak points and ensuring maximum reliability. The PTFE coating is also FDA approved, making it safe for use in food and beverage industries.

For those looking for even more durability, a stainless steel body option is available upon request. With sizes ranging from 2” to 12”, the Bonomi Ghibson Series 550P is the ultimate butterfly valve assembly for all your industrial needs.
