BONOMI GHIBSON SERIES 551P FDA APPROVED PTFE COATED SS DISC EPOXY COAT

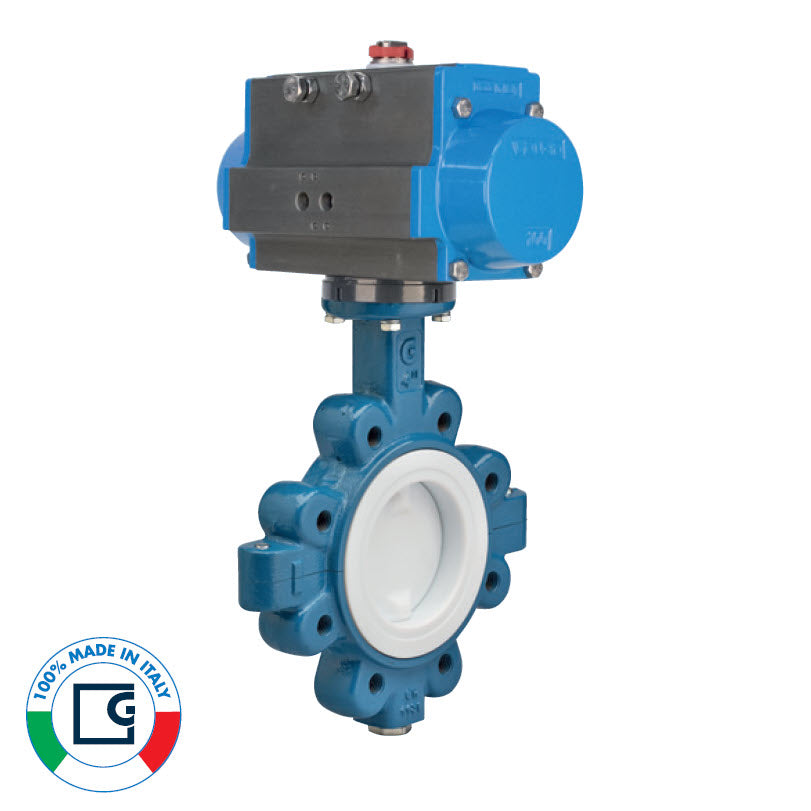

Introducing the Bonomi Ghibson DA551P or SR551P assemblies, featuring PTFE COATED SS DISC lug butterfly valves and Valbia double acting or spring return pneumatic actuator. This unique product boasts an epoxy coated ductile iron (EN-GJS 400-15) Lug body, with sizes ranging from 2” to 12”. The valve also includes an ISO 5211 direct mounting pad/square stem, ensuring easy installation and compatibility with other equipment.

The PTFE seat can withstand temperatures from 70°F to +392°F, making it suitable for a wide range of applications. The valve also meets API 609 face to face flange standards and features a floating dual shaft disc design. With a pressure rating of 250 psi for sizes 2”- 8” and 150 psi for sizes 10”-12”, this valve is built to handle high pressure environments.

Compliant with MSS SP 67 standards, this valve also boasts a unique design with no pins in the disc, eliminating potential leak points. The PTFE coating is FDA approved, making it safe for use in food and beverage industries. For those in need of a stainless steel body, the 550P model is available in sizes 2” to 12”.

Assembly Description

BONOMI GHIBSON DA551P WITH SERIES 551P, 2" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 2-1/2" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 3" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 4" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 5" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 6" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 8" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 10" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON DA551P WITH SERIES 551P, 12" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 2" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 2-1/2" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 3" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 4" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 5" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 6" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 8" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 10" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI GHIBSON SR551P WITH SERIES 551P, 12" DIRECT MOUNT, FDA APPROVED PTFE COATED SS DISC, PTFE SEATS, EPOXY COATED DUCTILE IRON LUG-STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Valve Type

BUTTERFLY VALVE
Temperature Rating

-70°F to 392°F
Pressure Rating

250 PSI
Valve Body Type

LUG STYLE
Approvals

FDA Approved, MSS SP 67
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Lug Style Flanged
Body Material

EPOXY COATED DUCTILE IRON (EN-GJS 400-15)
Actuator Housing Material

Hard Anodized Aluminum
