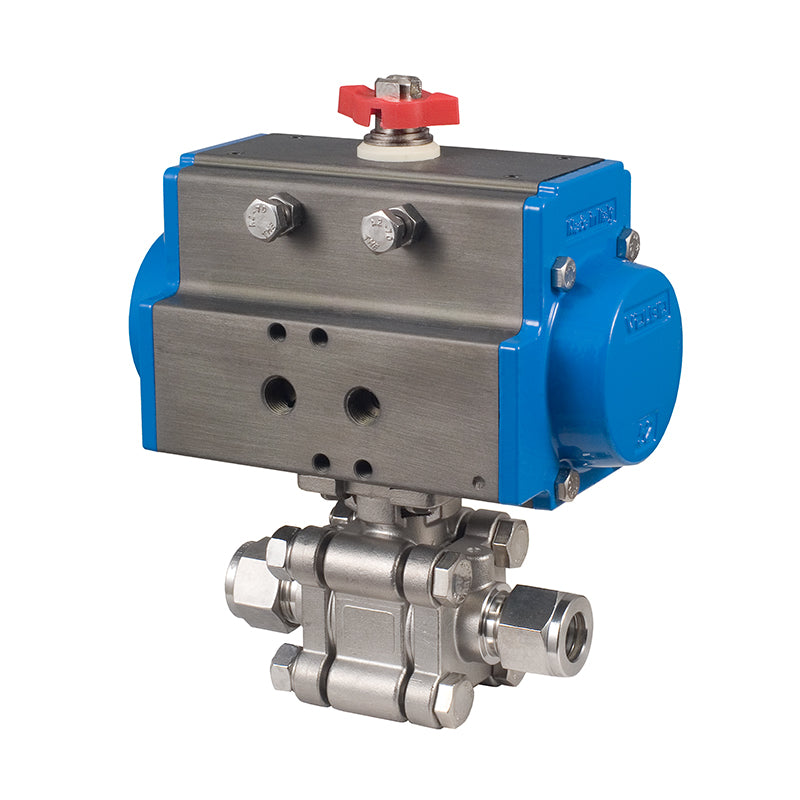

BONOMI SERIES 1300 2-WAY ST. ST. BODY 3-PIECE COMPRESSION END BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

Discover BONOMI SERIES 1300 2-WAY ST. ST. BODY 3-PIECE COMPRESSION END BALL VALVE AND VALBIA PNEUMATIC ACTUATOR superior control and reliability with our Direct Mount 2-way Stainless Steel Instrumentation Ball Valve featuring Compression Ends and a high-performance Pneumatic Actuator. Perfect for a wide range of applications including compressed air and gases, oils, and water. This valve boasts impressive specifications: Standard port design available in sizes from 1/4" to 3/4", with a working pressure of up to 2000 psi and a temperature range spanning from -4°F to 450°F. Equipped with an ISO 5211 mounting pad, heat-treated ferrules on compression ends, and a secure latch locking handle for enhanced safety.

The Actuator, engineered for precision, features a hard anodized extruded aluminum body, concentric spring sets, die-cast aluminum end caps, and a solid steel barstock pinion for exceptional durability and performance. With an adjustable 0°-90° rotation cam and bolts, it offers smooth and customizable control. The POM piston guides, coupled with a minimum air pressure rating of 80 psi and maximum of 116 psi, enable reliable operation in a wide temperature range from -4°F to 302°F. Say goodbye to maintenance hassles as this actuator requires no lubrication throughout its lifetime. Rigorously tested at our factory, this combination of valve and actuator guarantees enduring quality and performance. Elevate your systems with this advanced solution for precision control.
