BONOMI SERIES 250N 2-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 250N 2-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/4" NPT / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 250N 2-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ...

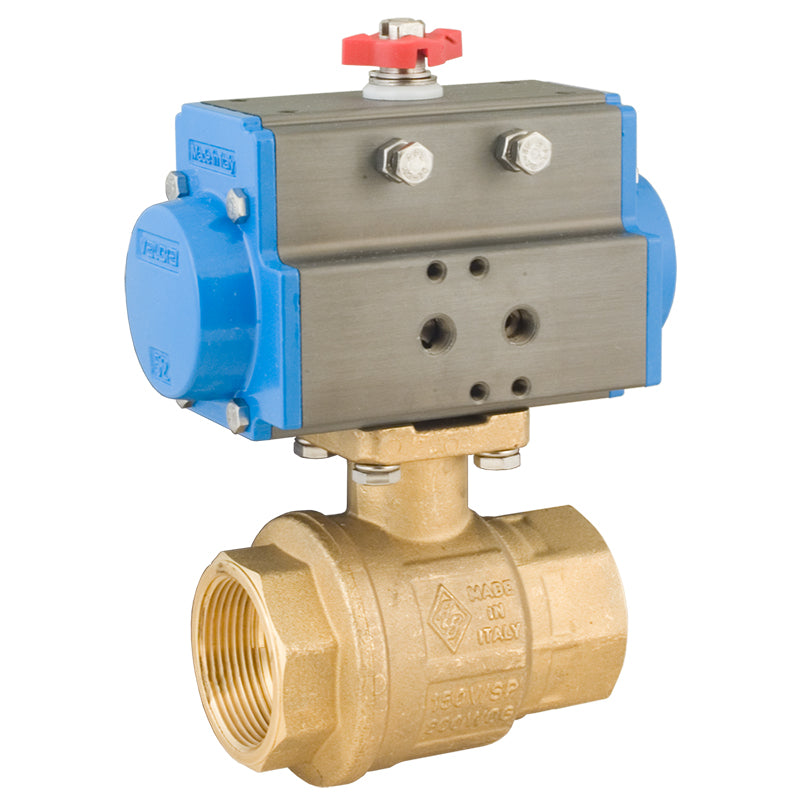

The BONOMI SERIES 250N 2-WAY BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount assembly with a brass NPT ball valve and pneumatic actuator. It is suitable for non-potable water, gas, and oil applications. The valve has a full port, sizes 1/4” to 4”, ISO 5211 pad and square stem, and a pressure rating of up to 600 WOG. It has a low torque design with a back up O-ring and a double O-ring stem seal design for extended cycle life. It is 100% electronically tested in the open and closed position at 80psi.
The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F and requires no lubrication maintenance for the entire actuator lifetime. It is 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
