BONOMI SERIES 253NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA P

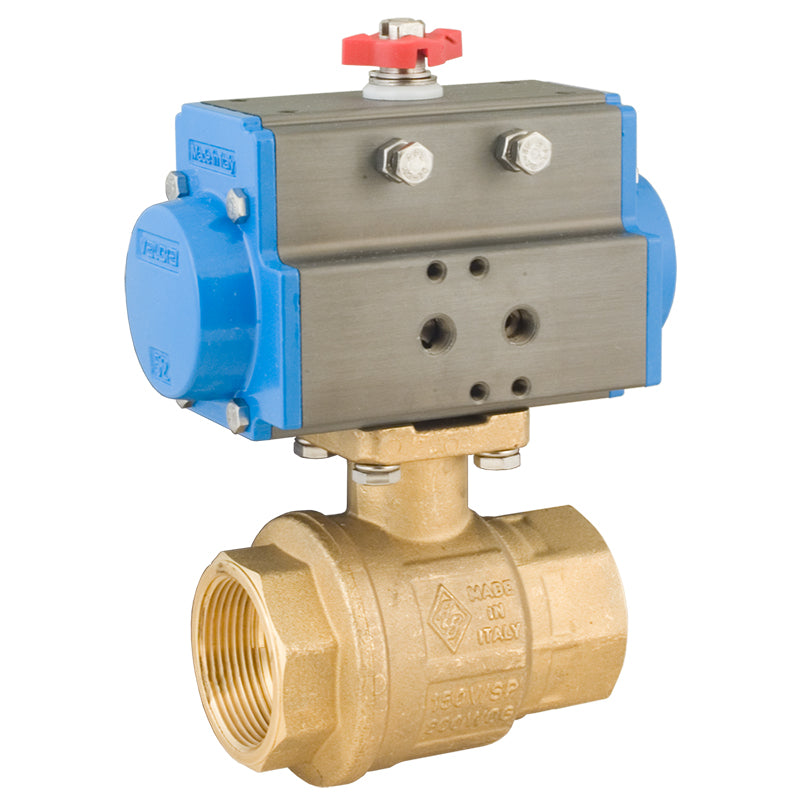

The BONOMI SERIES 253NLF 2-WAY LEAD FREE BRASS NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a unique assembly of a direct mount 2-way, brass NPT ball valve with stainless steel trim and a pneumatic actuator. It is designed for drinking water applications and is lead-free brass with stainless steel ball and stem. It has a full port, sizes 1/4” to 4”, ISO 5211 pad and square stem, and a pressure rating of up to 600 WOG. It has a low torque design with back up O-ring and a double O-ring stem seal design for extended cycle life. It is 100% electronically tested in the open and closed position at 80psi.

The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is 100% factory tested.

Assembly Description

BONOMI 8P0135LF WITH SERIES 253NLF, 1/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 1/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 3/8" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 3/8" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 1/2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 1/2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 3/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 3/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 1" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 1" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 1-1/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 1-1/4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 1-1/2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 1-1/2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 2-1/2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 2-1/2" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 3" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 3" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0135LF WITH SERIES 253NLF, 4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0136LF WITH SERIES 253NLF, 4" NPT, DIRECT MOUNT, LEAD FREE BRASS, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

600 WOG
Valve Body Type

2-PIECE
Approvals

NSF 61/372
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

LF BRASS
Actuator Housing Material

Hard Anodized Aluminum
