BONOMI SERIES 511SL 2-WAY ST. ST. BODY 2-PIECE NPT SAFETY EXHAUST BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 511SL 2-WAY ST. ST. BODY 2-PIECE NPT SAFETY EXHAUST BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/2" NPT / SPRING RETURN
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 511SL 2-WAY ST. ST. BODY 2-PIECE NPT SAFETY EXHAUST B...

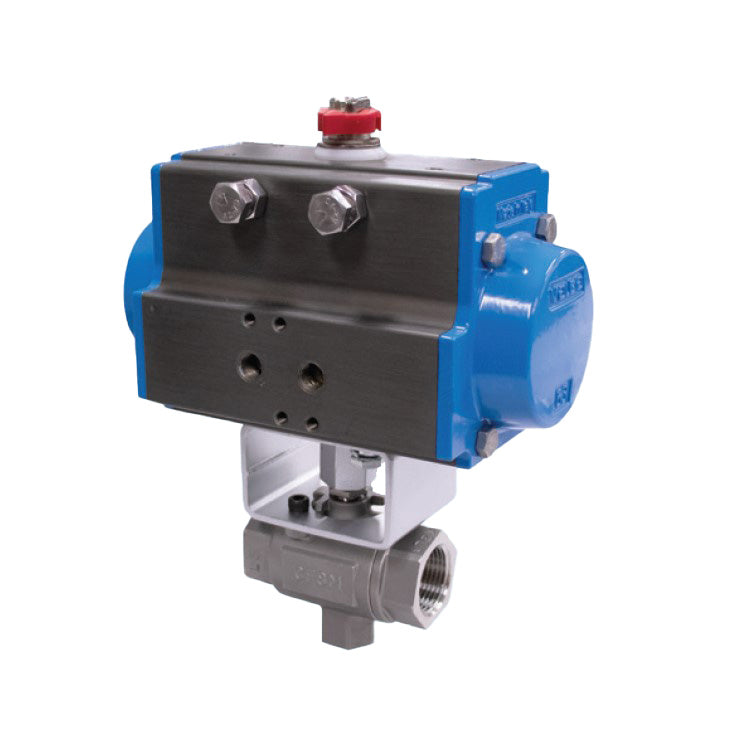

The BONOMI SERIES 511SL 2-WAY ST. ST. BODY 2-PIECE NPT SAFETY EXHAUST BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a Safety Exhaust Full Port Brass Ball Valve and a Pneumatic Actuator. It is designed for Gases Safety Exhaust Application. The Actuator features a Hard anodized extruded aluminum body, Concentric spring sets, Die cast aluminum end caps, Solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, and POM piston guides. The Valve has a Bleed Hole and Latch Lock Handle, a Pressure rating of 200 psi, a Temperature range of -4°F to 350°F, a Blow out proof stem, a chrome plated brass ball, P.T.F.E. seats, seals and thrust washer, an Adjustable stem packing, and is 100% electronically tested in the open position at 80 psi. It is designed to be used in fully open or fully closed position, and meets OSHA requirements and ANSI B1.20.1 connections.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Pressure Rating
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
