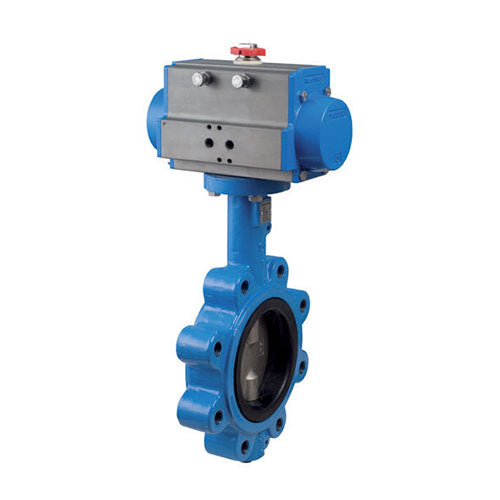

BONOMI GHIBSON SERIES 541S EPOXY COATED CAST IRON BODY ST. ST. DISC BU

Discover BONOMI SERIES 541S EPOXY COATED CAST IRON BODY ST. ST. DISC BUNA-N SEATS LUG STYLE BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR the Ultimate 2-Way Rubber Lined Lug-Style Butterfly Valve with Pneumatic Actuator for HVAC, Water, and Air Applications.

Featuring a Stainless Steel Disc, Buna-N Seats, and ISO 5211 Direct Mount/Square Stem. This valve boasts a Durable Epoxy Coated Ductile Iron Lug Body, API609 Face to Face Flange, and Floating Dual Shaft Disc Design. With its Impeccable Engineering, it`s MSS SP 67 Compliant. 372 Approved, and Features a Leak-Proof Design.

The Actuator is Equally Impressive, Sporting Hard Anodized Aluminum Body, Solid Steel Barstock Pinion, and Hassle-Free 0°-90° Rotation Adjustment. Enjoy Effortless Performance with Air Pressure Ratings Ranging from 80 psi to 116 psi and a Wide Working Temperature Range of -4°F to 302°F. No Lubrication Maintenance Required Throughout its Lifetime.

Experience Peace of Mind with 100% Factory Testing. Elevate your System Today!

Assembly Description

BONOMI DA541S WITH VALVE SERIES 541S, 2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 2-1/2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 3", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 4", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 5", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 6", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 8", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 10", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 12", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 2-1/2", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 3", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 4", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 5", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 6", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 8", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 10", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 14", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 16", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 18", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA541S WITH VALVE SERIES 541S, 20", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 12", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 14", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 16", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR270V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 18", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR270V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR541S WITH VALVE SERIES 541S, 20", DIRECT MOUNT, EPOXY COATED CAST IRON BODY, BUNA-N (NBR) SEATS, LUG STYLE BUTTERFLY VALVE AND VALBIA SR330V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BUTTERFLY VALVE
Temperature Rating

30 °F to 266 °F
Pressure Rating

250 PSI
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Lug Style Flanged
Body Material

DUCTILE IRON WITH STAINLESS STEEL DISC
Actuator Housing Material

Hard Anodized Aluminum
