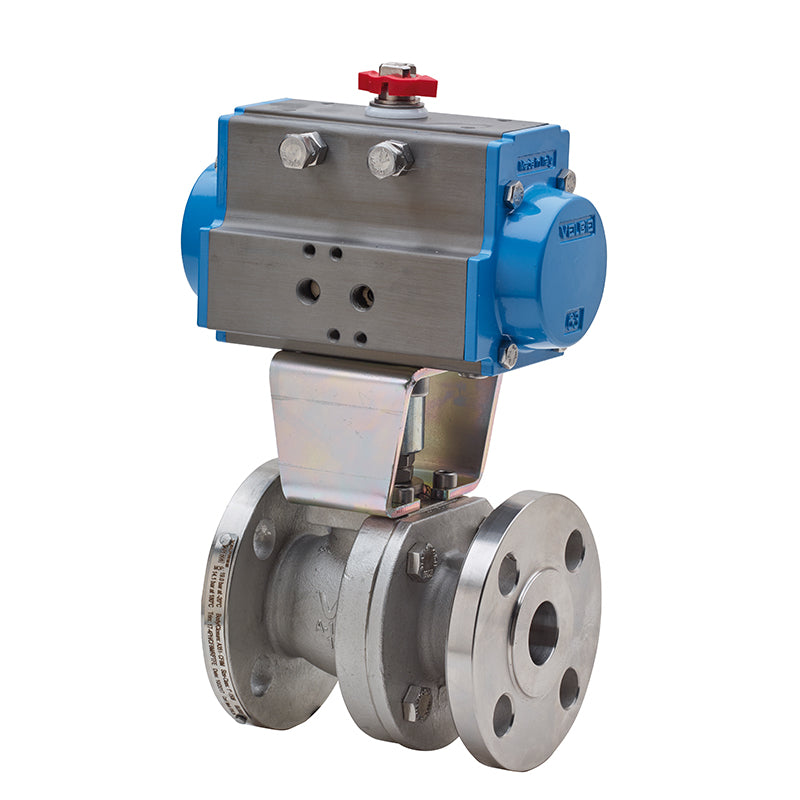

BONOMI SERIES 68J000 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES 68J000 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a unique assembly of a 2-way, ANSI 150 Stainless Steel API 608 Split-Body Style Flanged Ball Valve and Actuator. It is suitable for applications such as water, gas, and oil. The valve has a stainless steel ANSI 150 split body flanged API 608 ball valve, full port, sizes 1/2” to 6”, temperature range of -4°F to 366°F, blow out proof stem, locking handle, fire safe design, R.T.F.E. seats, packing and thrust washer, antistatic device, API 608, ASME B16.34, ASME B16.10, ASME 16.5, ASME B1.1 design, and ISO 5211 mounting pad and double “D” stem. The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime.

The BONOMI SERIES 68J000 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is 100% factory tested and is designed to provide reliable performance and long-lasting durability. It is an ideal choice for a wide range of industrial applications.
