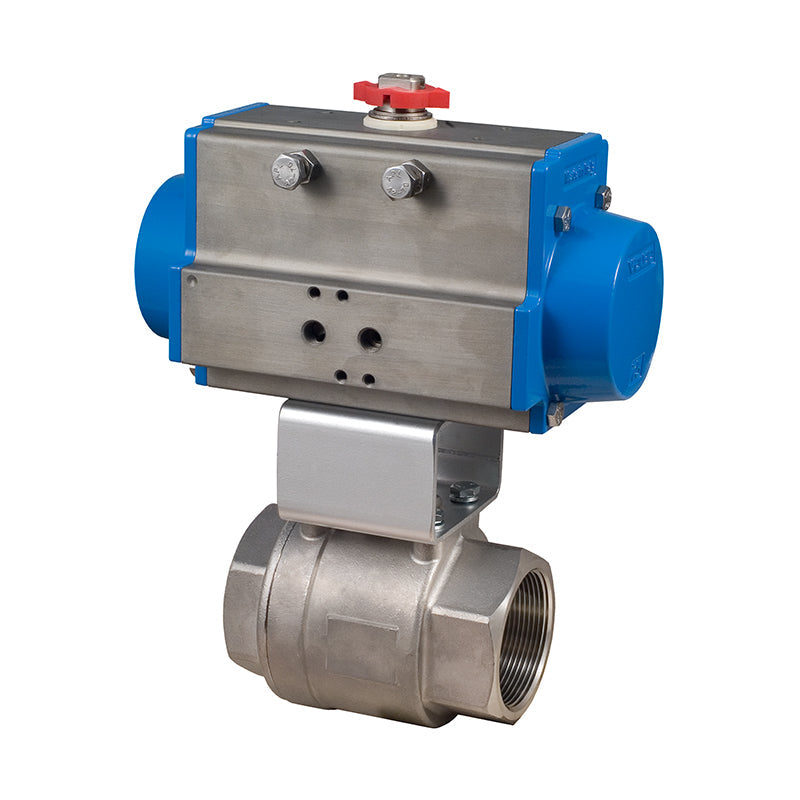

BONOMI SERIES 700LL 2-WAY ST. ST. BODY 2-PIECE NPT BALL VALVE AND VALB

The BONOMI SERIES 700LL 2-WAY ST. ST. BODY 2-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, Stainless Steel NPT Ball Valve and Pneumatic Actuator. It is suitable for applications such as Hot Water, Steam, Oil, and Gases. The valve has a 2-piece Stainless Steel body, full port, sizes 1/4” to 2”, self adjusting stem packing, blow out proof stem design, and a pressure rating of 1/4” to 1” 2000 psi, 1-1/4” to 2” 1000 psi - 150 psi steam. The temperature range is -4°F to 450°F. The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, and a working temperature of -4°F - 302°F.

The actuator requires no lubrication maintenance for its entire lifetime and is 100% factory tested. The valve also has a thermal relief hole in the stem slot and a mounting pad for the actuator. This product is ideal for a variety of applications and is sure to provide reliable performance.

Assembly Description

BONOMI 8P0026 WITH SERIES 700LL, 1/4" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 1/4" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 3/8" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 3/8" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 1/2" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 1/2" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 3/4" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 3/4" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 1" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 1" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 1-1/4" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 1-1/4" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 1-1/2" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 1-1/2" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0026 WITH SERIES 700LL, 2" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0027 WITH SERIES 700LL, 2" NPT, BRACKET MOUNT, ST. ST. BODY, 2-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-40 °F to 450 °F
Pressure Rating

2000 PSI
Valve Body Type

2-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
