BONOMI SERIES 720016 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED WAFER S

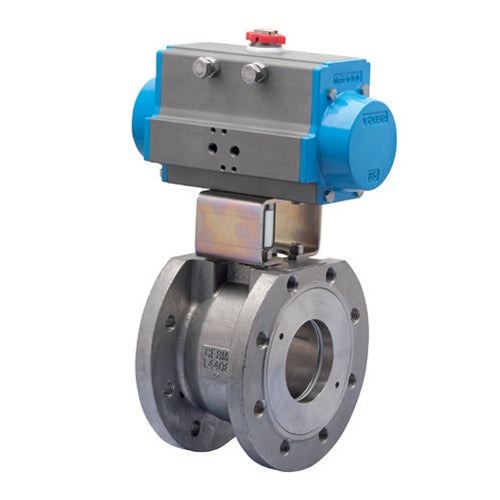

The BONOMI SERIES 720016 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an attractive and stylish product. It is an assembly of a 2-Way, ANSI 150 Stainless Steel Wafer-style Flanged Ball Valve and Pneumatic Actuator, suitable for water, gas and oil applications.

The valve's specifications include a stainless steel ANSI 150 full port, sizes 1/2” to 6”; temperature range of -4°F to 366°F; blow out proof stem design; R.P.T.F.E. seats, packing and thrust washer; space saving design; TUV T.A. Luft approved; ANSI B16.34 design; and ISO 5211 mounting pad with double “D” stem.

The actuator's specifications include a hard anodized extruded aluminum body; concentric spring sets; die cast aluminum end caps; solid steel barstock pinion (not casting); 0°-90° rotation adjustment cam; 0°-90° rotation adjustment bolts; POM piston guides; minimum air pressure rating of 80 psi; maximum air pressure rating of 116 psi; working temperature of -4°F - 302°F; no lubrication maintenance required for the entire actuator lifetime; and 100% factory tested.

Assembly Description

BONOMI 8P0173 WITH SERIES 720016, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 5", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0173 WITH SERIES 720016, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 5", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0174 WITH SERIES 720016, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE180V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

275 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
