BONOMI SERIES 720289 2-WAY CARBON STEEL ANSI CLASS 300 WAFER STYLE BAL

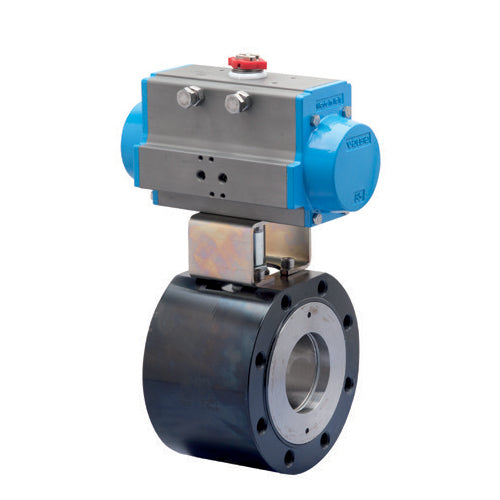

The BONOMI SERIES 720289 2-WAY CARBON STEEL ANSI CLASS 300 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, ANSI 300 Carbon Steel Wafer-style Flanged Ball Valve and a Pneumatic Actuator. It is suitable for applications such as water, gas, and oil.

The valve's specifications include a Carbon Steel ANSI 300 Full port, sizes 1/2” to 6”; Temperature range: -4°F to 366°F; Blow out proof stem design; R.P.T.F.E. seats, packing and thrust washer; Space saving design; TUV T.A. Luft approved; ANSI B16.34 design; ISO 5211 mounting pad with double “D” stem.

The actuator's specifications include a Hard anodized extruded aluminum body; Concentric spring sets; Die cast aluminum end caps; Solid steel barstock pinion (not casting); 0°-90° rotation adjustment cam; 0°-90° rotation adjustment bolts; POM piston guides; Minimum air pressure rating: 80 psi; Maximum air pressure rating: 116 psi; Working temperature: -4°F - 302°F; No lubrication maintenance required for the entire actuator lifetime; 100% factory tested.

Assembly Description

BONOMI 8P720289 WITH SERIES 720289, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 1-1/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 2-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720289 WITH SERIES 720289, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 1-1/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 2-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720291 WITH SERIES 720289, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 300, WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR230V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

740 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
