BONOMI SERIES 720741 2-WAY ST. ST. BODY ANSI CLASS 300 FIRE SAFE DESIG

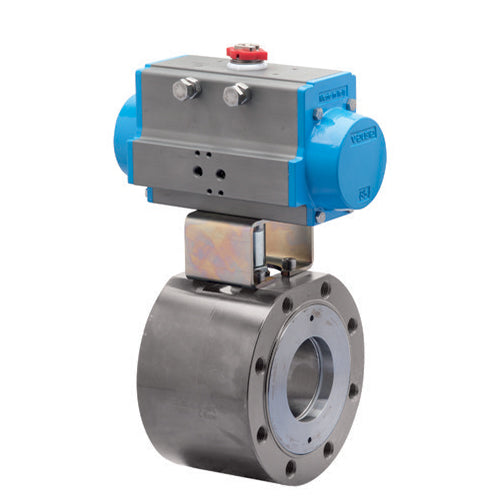

The BONOMI SERIES 720741 2-WAY ST. ST. BODY ANSI CLASS 300 FIRE SAFE DESIGN FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly designed for water, gas, and oil applications. It features a stainless steel ANSI 300 full port, with sizes ranging from 1/2” to 6”. The valve is fire-safe approved with an anti-static stem device, blow out proof stem design, and R.P.T.F.E. seats, packing, and thrust washer. It is TUV T.A. Luft approved and has an ANSI B16.34 design with an ISO 5211 mounting pad and double “D” stem.

The pneumatic actuator is made of hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, and solid steel barstock pinion. It has a 0°-90° rotation adjustment cam and bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F and requires no lubrication maintenance for its entire lifetime. It is 100% factory tested.

Assembly Description

BONOMI 8P720741 WITH SERIES 720741, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720741 WITH SERIES 720741, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P720743 WITH SERIES 720741, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 300, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR230V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 366 °F
Pressure Rating

285 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
