BONOMI SERIES 720LL 2-WAY ST. ST. BODY 3-PIECE NPT BALL VALVE AND VALB

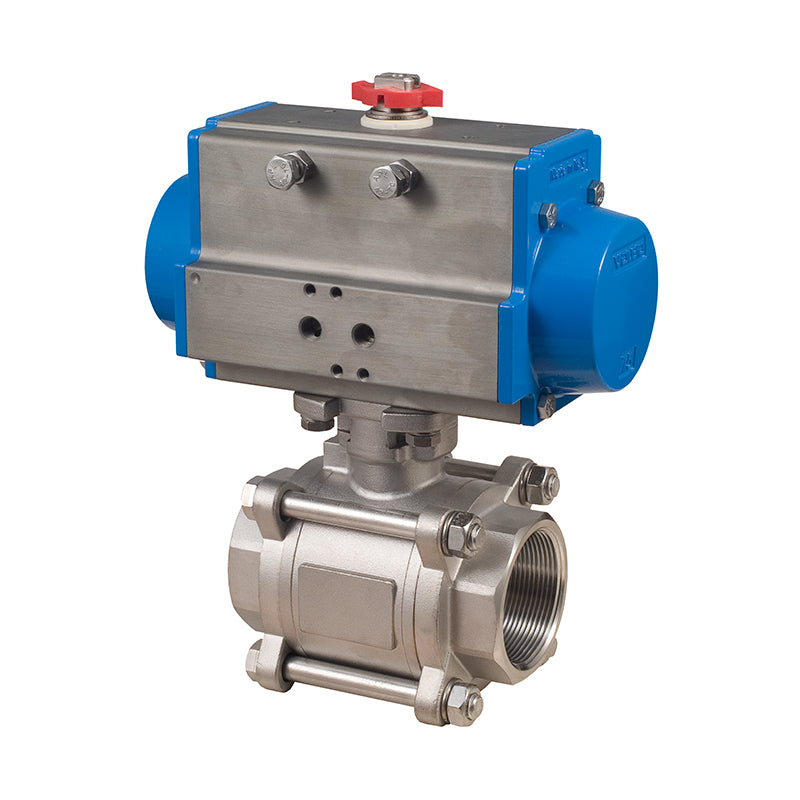

The BONOMI SERIES 720LL 2-WAY ST. ST. BODY 3-PIECE NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a direct mount assembly with a 2-way, 3 Pc. stainless steel ball valve and NPT ends. It is suitable for hot water, steam, oil, and gases. The valve has a 3-piece stainless steel body, full port, sizes 1/4” to 4”, NPT, ISO 5211 mounting pad w/ square stem, and pressure rating 1/4” to 2” 1000 psi, 2-1/2” to 4” 800 psi - 150 psi steam. The temperature range is -60°F to +440°F. It also has a blow out proof stem, multi-layer V-ring adjustable stem packing, TFM-1600 seats, P.T.F.E. packing and thrust washer.

The pneumatic actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is 100% factory tested.

Assembly Description

BONOMI 8P0720 WITH SERIES 720LL, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 3" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0720 WITH SERIES 720LL, 4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 1" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 3" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0721 WITH SERIES 720LL, 4" NPT, DIRECT MOUNT, ST. ST. BODY, 3-PIECE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-40 °F to 440 °F
Pressure Rating

1000 PSI
Valve Body Type

3-PIECE
Valve Body Configuration

2-WAY
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
