BONOMI SERIES 721V16 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIG

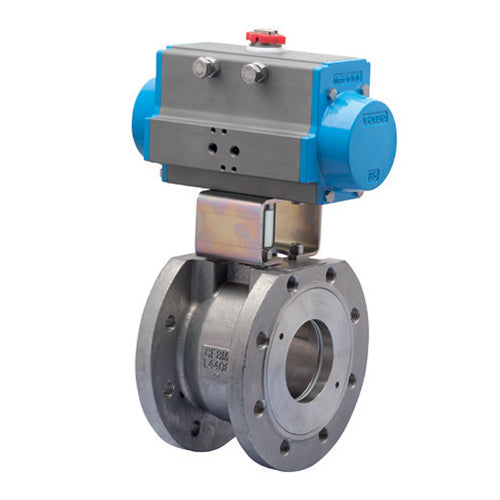

The BONOMI SERIES 721V16 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, ANSI 150 Stainless Steel Wafer-style Flanged Ball Valve and a Pneumatic Actuator. It is suitable for water, gas, and oil applications.

The valve has a stainless steel ANSI 150 full port, with sizes ranging from 1/2” to 6”. It has a temperature range of -4°F to 366°F, and is fire-safe approved with an anti-static stem device. It also has blow out proof stem design, R.P.T.F.E. seats, packing and thrust washer, and a space saving design. It is TUV T.A. Luft approved and has an ANSI B16.34 design, as well as an ISO 5211 mounting pad with double “D” stem.

The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F - 302°F, and no lubrication maintenance is required for the entire actuator lifetime. It is also 100% factory tested.

Assembly Description

BONOMI 8P721V16 WITH SERIES 721V16, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V16 WITH SERIES 721V16, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 1-1/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 2-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P721V18 WITH SERIES 721V16, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

275 PSI
Valve Body Type

WAFER STYLE
Approvals

TÜV T.A. LUFT APPROVED
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
