BONOMI | SKU: 8P723101-1

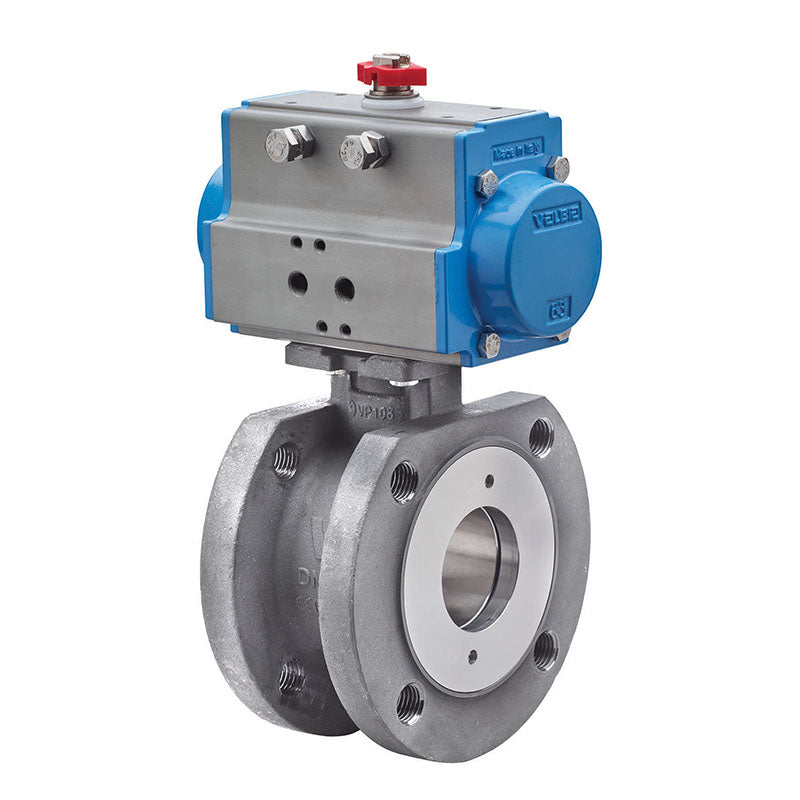

BONOMI SERIES 723101 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

$511⁸⁰ USD ~~$663⁴⁴~~

Shipping calculated at checkout.

Size

1" ANSI 150 FLANGED WAFER STYLE 1-1/4" ANSI 150 FLANGED WAFER STYLE 1-1/2" ANSI 150 FLANGED WAFER STYLE 2" ANSI 150 FLANGED WAFER STYLE 2-1/2" ANSI 150 FLANGED WAFER STYLE 3" ANSI 150 FLANGED WAFER STYLE 4" ANSI 150 FLANGED WAFER STYLE

Actuator Action

DOUBLE ACTING SPRING RETURN

Product variants

BONOMI SERIES 723101 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1" ANSI 150 FLANGED WAFER STYLE / DOUBLE ACTING

Shipping Weight:

7.81 lb

Delivery and Shipping

Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.

Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.

We will notify you if lead time is extended.

Please contact us if you need assistance selecting your valve assembly.

The BONOMI SERIES 723101 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a stylish and attractive assembly for e-commerce stores. It is a direct mount 2-way, ANSI 150 stainless steel wafer-style flanged ball valve and pneumatic actuator, suitable for water, gas, and oil applications.

The valve's specifications include stainless steel direct mount ANSI 150, full port, sizes 1” to 4”; temperature range: -4°F to 366°F; antistatic stem device; dual O-rings FKM Viton; dual P.T.F.E. seats; ISO 5211 mounting pad/square stem; and low torque design. The actuator's specifications include hard anodized extruded aluminum body; concentric spring sets; die cast aluminum end caps; solid steel barstock pinion (not casting); 0°-90° rotation adjustment cam; 0°-90° rotation adjustment bolts; POM piston guides; minimum air pressure rating: 80 psi; maximum air pressure rating: 116 psi; working temperature: -4°F - 302°F; and no lubrication maintenance required for the entire actuator lifetime.

This product is 100% factory tested and is sure to provide a stylish and attractive addition to any e-commerce store.

Assembly Description

BONOMI 8P723101 WITH SERIES 723101, 1",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723101 WITH SERIES 723101, 1-1/4",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723101 WITH SERIES 723101, 1-1/2",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723101 WITH SERIES 723101, 2",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723101 WITH SERIES 723101, 2-1/2",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723101 WITH SERIES 723101, 3",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723101 WITH SERIES 723101, 4",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 1",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 1-1/4",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 1-1/2",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 2",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 2-1/2",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 3",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P723103 WITH SERIES 723101, 4",DIRECT MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED WAFER STYLE, FULL PORT, 2-WAY BALL VALVE AND VALBIA SE115V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

275 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
