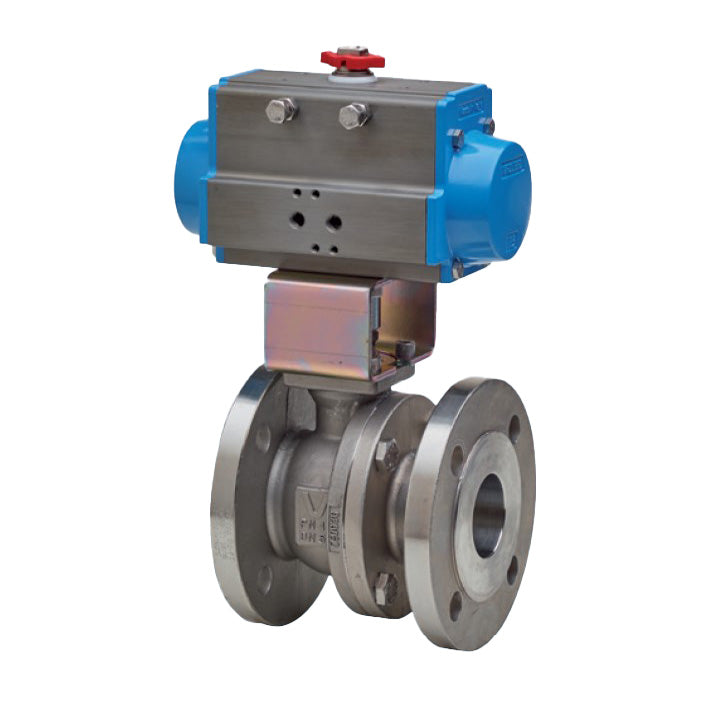

BONOMI SERIES 760005 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES 760005 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, ANSI 150 Stainless Steel Split-Body Style Flanged Ball Valve and Pneumatic Actuator. It is suitable for applications such as water, gas, and oil. The valve has a stainless steel ANSI 150 split body flanged design, full port sizes from 1/2” to 12”, temperature range of -4°F to 366°F, blow out proof stem design, P.T.F.E. seats, packing and thrust washer, standard grounded ball and stem, PED 97/23/CE, locking handle plate, ANSI B16.5, B16.10, B16.34 design, and fire safe API 6FA-API 607 4th edition. The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime.

The BONOMI SERIES 760005 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is 100% factory tested and is designed to provide reliable performance. It is a great choice for applications that require a high level of safety and reliability.
