BONOMI SERIES 760021 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED SPLIT B

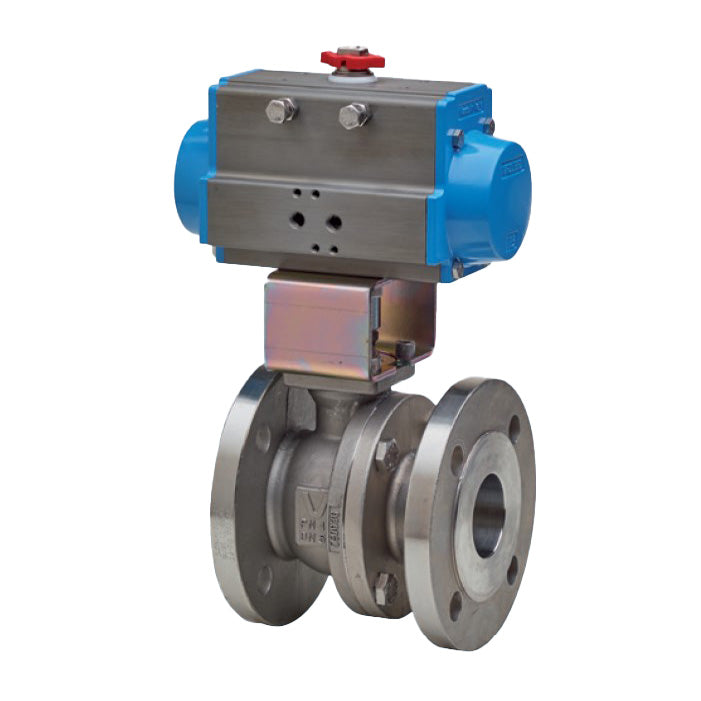

The BONOMI SERIES 760021 2-WAY ST. ST. BODY ANSI CLASS 150 FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for hot water, steam, oil, and gas applications. The valve features a stainless steel ANSI 150 split body flanged for steam, full port, and sizes 1/2” to 12”. It also has a blow out proof stem design, P.T.F.E. seats, packing and thrust washer, standard grounded ball and stem, PED 97/23/CE, locking handle plate, ANSI B16.5, B16.10, B16.34 design, fire safe API 6FA-API 607 4th edition, and ISO 5211 mounting pad and double “D” stem.

The actuator is made of hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is also 100% factory tested.

Assembly Description

BONOMI 8P760021 WITH SERIES 760021, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760021 WITH SERIES 760021, 8", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 3/4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 1", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 1-1/2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 2", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 3", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 4", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 6", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760023 WITH SERIES 760021, 8", BRACKET MOUNT, ST. ST. BODY ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

'-4 °F to 406 °F
Pressure Rating

275 PSI
Valve Body Type

SPLIT BODY
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
