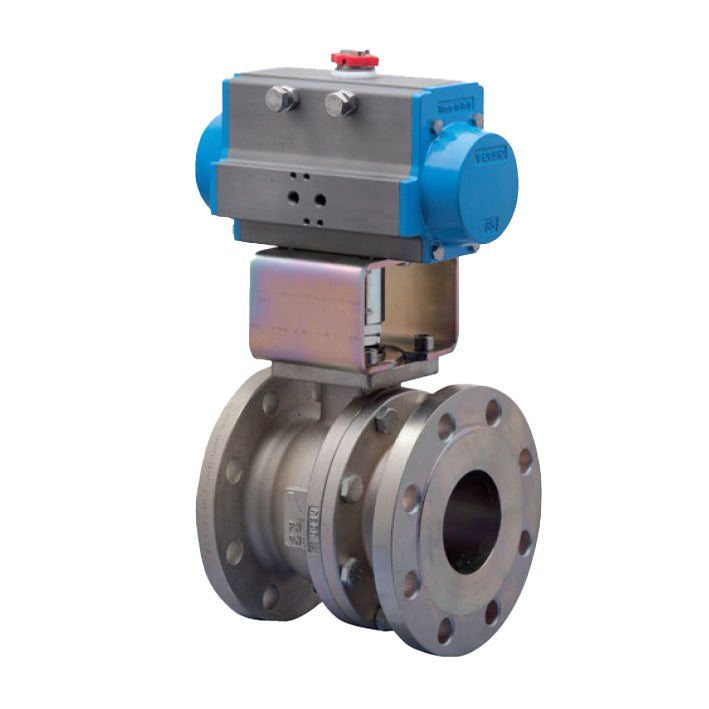

BONOMI SERIES 760137 2-WAY CARBON STEEL ANSI CLASS 150 FLANGED SPLIT B

The BONOMI SERIES 760137 2-WAY CARBON STEEL ANSI CLASS 150 FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, ANSI 150 Carbon Steel Split-Body Style Flanged Ball Valve and a Pneumatic Actuator. It is suitable for applications such as water, gas, and oil.

The valve's specifications include a Carbon Steel ANSI 150 Split Body Flanged for Steam, a full port size of 1/2” to 12”, a temperature range of -4°F to 366°F, a blow out proof stem design, P.T.F.E. seats, packing and thrust washer, a standard grounded ball and stem, PED 97/23/CE, a locking handle plate, ANSI B16.5, B16.10, B16.34 design, Fire Safe API 6FA-API 607 4th edition, and an ISO 5211 mounting pad and double “D” stem.

The actuator's specifications include a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, a minimum air pressure rating of 80 psi, a maximum air pressure rating of 116 psi, a working temperature of -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.

Assembly Description

BONOMI 8P760137 WITH SERIES 760137, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA32V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760137 WITH SERIES 760137, 8", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR52V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 3/4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 1", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 1-1/2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 2", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 3", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 4", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 6", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P760139 WITH SERIES 760137, 8", BRACKET MOUNT, CARBON STEEL ANSI CLASS 150, FLANGED SPLIT BODY, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 406 °F
Pressure Rating

285 PSI
Valve Body Type

SPLIT BODY
Approvals

PED 97/23/CE - FIRE SAFE API 6FA-API 607-4TH ED.
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
