BONOMI SERIES 761030 2-WAY ST. ST. ANSI CLASS 300 FIRE SAFE DESIGN FLA

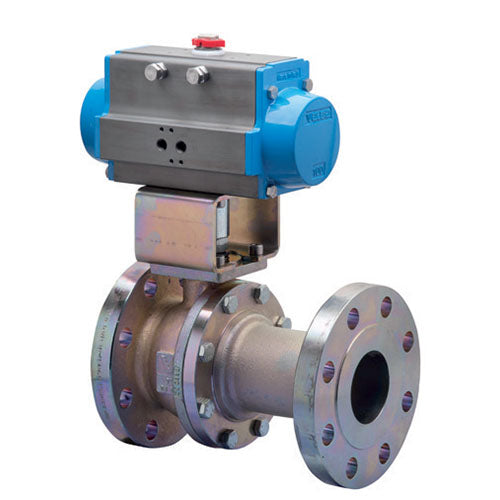

The BONOMI SERIES 761030 2-WAY ST. ST. ANSI CLASS 300 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a versatile assembly for water, gas, and oil applications. The valve is made of stainless steel and is ANSI class 300 flanged, with a full port size of 1/2” to 6”. It has a temperature range of -4°F to 400°F, a blow-out proof stem, adjustable stem packing, P.T.F.E. seats, packing and thrust washer, and is 100% tested. It is also PED 97/23/CE, ANSI B16.5, B16.10, B16.34 design, Fire Safe API 6FA-API 607 4th edition, and has an antistatic device and ISO 5211 mounting pad with double “D” stem.

The pneumatic actuator is made of hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and has a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It also has a working temperature of -4°F - 302°F, and no lubrication maintenance is required for the entire actuator lifetime. It is 100% factory tested.

Assembly Description

BONOMI 8P761030 WITH SERIES 761030, 1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 3/4", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 1", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 1-1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 2", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 3", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 4", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761030 WITH SERIES 761030, 6", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA DA180V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 3/4", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 1", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 1-1/2", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 2", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 3", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 4", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P761032 WITH SERIES 761030, 6", BRACKET MOUNT, ST. ST. ANSI CLASS 300 FLANGED SPLIT BODY, FIRE SAFE DESIGN, FULL PORT, 2-WAY BALL VALVE AND VALBIA SR270V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-4 °F to 366 °F
Pressure Rating

720 PSI
Valve Body Type

SPLIT BODY
Approvals

PED 97/23/CE - FIRE SAFE API 6FA-API 607-4TH ED.
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 300 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
