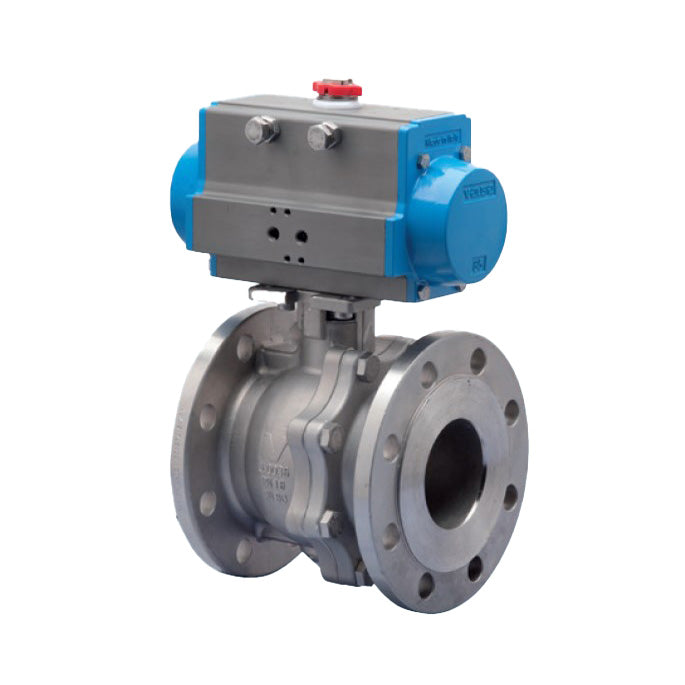

BONOMI SERIES 766000 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES 766000 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a unique direct mount 2-way, ANSI 150 stainless steel split-body style flanged ball valve and pneumatic actuator. It is suitable for water, gas, and oil applications. The valve features stainless steel construction, ANSI class 150 flanged, direct mount ISO 5211/square stem, full port, sizes 1” to 4”, temperature range -4°F to 400°F, blow-out proof stem, adjustable stem packing, P.T.F.E. seats, packing and thrust washer and FKM Viton O-rings, and fire safe certified to API 607 6th edition. The actuator features hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating: 80 psi, maximum air pressure rating: 116 psi, working temperature: -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime.

The BONOMI SERIES 766000 2-WAY ST. ST. BODY ANSI CLASS 150 FIRE SAFE DESIGN FLANGED SPLIT BODY BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is 100% tested and designed to ANSI B16.5, B16.10, B16.34 standards. It is equipped with an antistatic device for added safety. This product is ideal for industrial and commercial applications that require reliable and durable performance.
