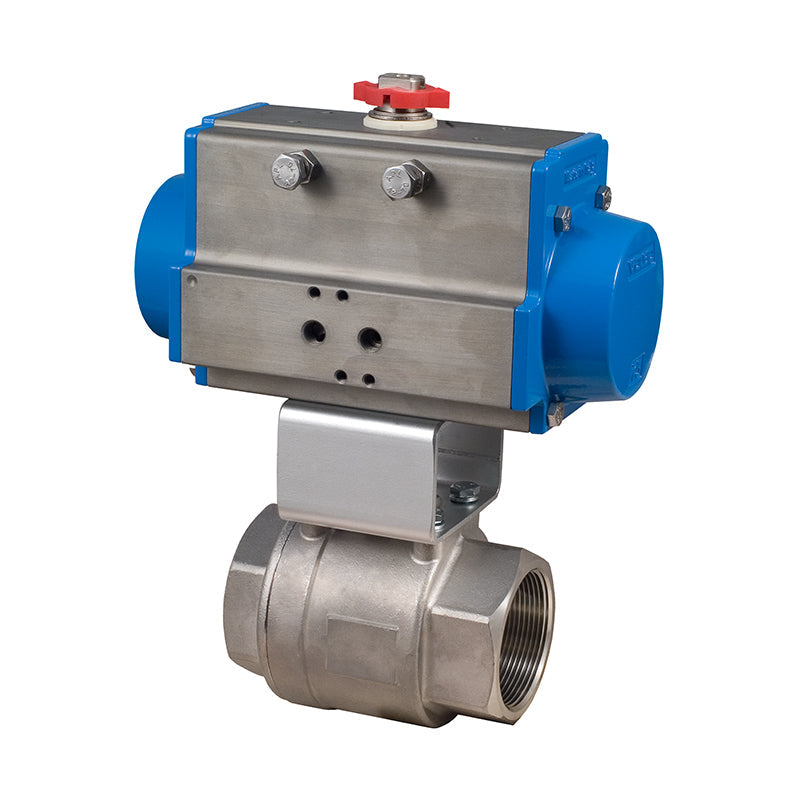

BONOMI SERIES 7700LL 2-WAY ST. ST. BODY 2-PIECE NPT SEAL WELD BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 7700LL 2-WAY ST. ST. BODY 2-PIECE NPT SEAL WELD BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/4" NPT / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
The BONOMI SERIES 7700LL 2-WAY ST. ST. BODY 2-PIECE NPT SEAL WELD BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a 2-Way, Seal-welded Unibody Stainless Steel Ball Valve and Pneumatic Actuator. It is suitable for applications such as Hot Water, Steam, Oil, and Gases. The valve has a Unibody Stainless Steel body, Full port, sizes 1/4” to 2”, Fire-safe certified to API 607, Grounded ball and stem, Self adjusting stem packing, Blow out proof stem design, 100% air tested under water at 80 psi, Pressure rating 1/4” to 2” 2000 psi, 200 psi steam, and Temperature range -4°F to 450°F. The actuator has a Hard anodized extruded aluminum body, Concentric spring sets, Die cast aluminum end caps, Solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, Minimum air pressure rating: 80 psi, Maximum air pressure rating: 116 psi, Working temperature: -4°F - 302°F, No lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.
The BONOMI SERIES 7700LL 2-WAY ST. ST. BODY 2-PIECE NPT SEAL WELD BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is a reliable and durable product that is designed to last. It is easy to install and maintain, and is suitable for a wide range of applications. It is a great choice for those looking for a high-quality and reliable valve and actuator assembly.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
