BONOMI SERIES 8100 CARBON STEEL BODY ST. ST. DISC PTFE SEATS WAFER STY

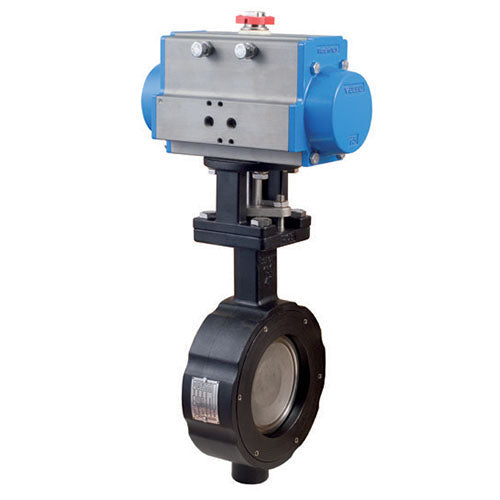

Introducing the BONOMI SERIES 8100 CARBON STEEL BODY ST. ST. DISC PTFE SEATS WAFER STYLE ANSI CLASS 150 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR. This innovative assembly is a 2-way, carbon steel wafer-style high performance butterfly valve and pneumatic actuator. It is designed for use in water, gas, and oil applications.

The valve's specifications include a carbon steel ANSI 150 wafer style, with sizes 2. This product is designed for maximum performance and reliability, making it the perfect choice for any application.

For more information on the BONOMI SERIES 8100 CARBON STEEL BODY ST. ST. DISC PTFE SEATS WAFER STYLE ANSI CLASS 150 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR, please visit http://bonomivalves.com/products/bonomi-series-8100-carbon-steel-body-st-st-disc-ptfe-seats-wafer-style-ansi-class-150-hp-butterfly-valve-and-valbia-pneumatic-actuator.

Assembly Description

BONOMI DA8100 WITH SERIES 8100, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA8100 WITH SERIES 8100, 12", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA DA125V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 2-1/2", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 3", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 4", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 5", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 6", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 8", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 10", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR8100 WITH SERIES 8100, 12", DIRECT MOUNT, CARBON STEEL BODY, PTFE SEATS, ANSI CLASS 150 HIGH PERFORMANCE WAFER STYLE BUTTERFLY VALVE AND VALBIA SR200V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

HIGH-PERFORMANCE BUTTERFLY VALVE
Temperature Rating

-20 °F to 475 °F
Pressure Rating

285 PSI
Valve Body Type

WAFER STYLE
Valve Body Configuration

2-WAY
Valve Connection Type

ANSI 150 Wafer Style Flanged
Body Material

CARBON STEEL
Actuator Housing Material

Hard Anodized Aluminum
