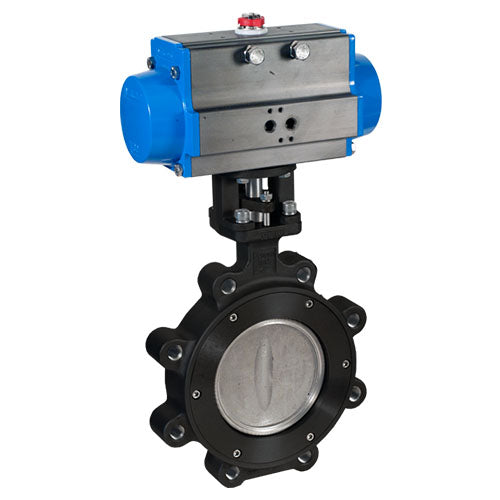

BONOMI SERIES 8301 CARBON STEEL BODY ST. ST. DISC PTFE SEATS LUG STYLE ANSI CLASS 300 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR

Discover BONOMI SERIES 8301 CARBON STEEL BODY ST. ST. DISC PTFE SEATS LUG STYLE ANSI CLASS 300 HP BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR our cutting-edge 2-Way, Carbon Steel Lug-style High Performance Butterfly Valve and Pneumatic Actuator, a truly unique combination that revolutionizes fluid control in various applications. Designed to excel in handling Hot Water, Steam, Oil, and Gases, this valve boasts a remarkable set of specifications that sets it apart from the competition. Crafted from ANSI 300 Carbon Steel, the valve comes in sizes ranging from 2" to 12" with a space-saving ISO 5211 direct mounting pad/square stem configuration for seamless integration. Its replaceable seat design and multiple V-ring stem packing ensure unparalleled reliability and easy maintenance. With temperature endurance from -20°F to 475°F and R.P.T.F.E. seats, expand its versatility even further with metal seats available upon request, providing the ideal solution for your specific needs.

Complementing this exceptional valve is our state-of-the-art Actuator, featuring a hard anodized extruded aluminum body for robustness and longevity. Equipped with concentric spring sets, die-cast aluminum end caps, and a solid steel barstock pinion, this actuator guarantees smooth and precise 0°-90° rotation adjustment. Its ingeniously designed POM piston guides enable flawless operation even in extreme temperature conditions, ranging from -4°F to 302°F. The actuator's remarkable maintenance-free attribute eliminates the need for lubrication throughout its lifetime, while a stringent 100% factory testing ensures top-notch performance right from the start. Embrace the future of fluid control with this unparalleled combination, engineered to surpass expectations and provide unmatched reliability in any setting.
