BONOMI SERIES 956N 3-WAY FULL T-PORT ST. ST. BODY NPT BALL VALVE AND V

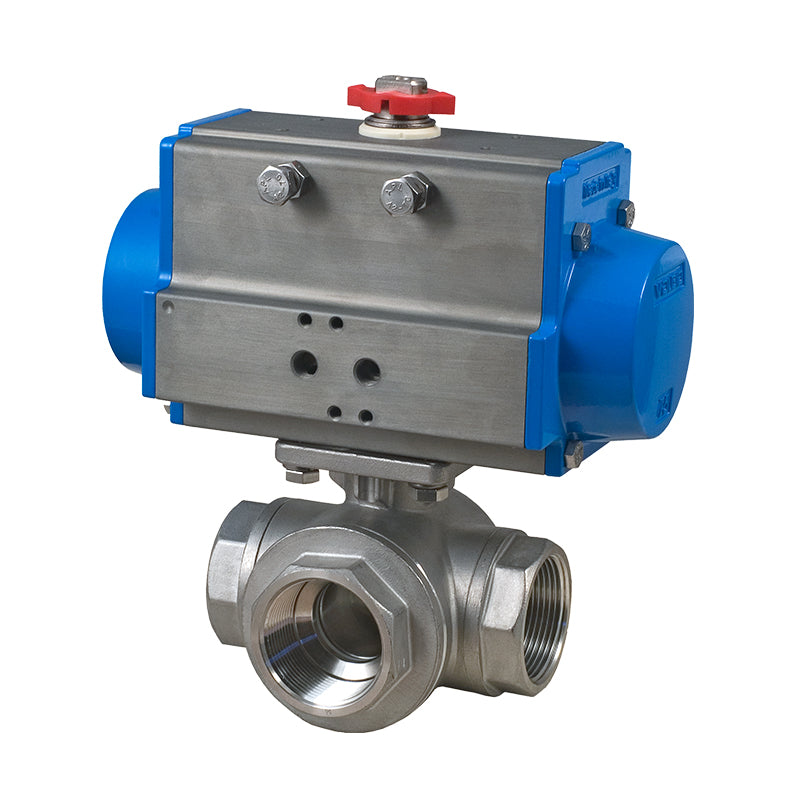

The BONOMI SERIES 956N 3-WAY FULL T-PORT ST. ST. BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a direct mount T-ported 3-way, stainless steel NPT full port ball valve and pneumatic actuator. It is suitable for water, gas, and oil applications.

The valve's specifications include CF8M stainless steel, full T-port, sizes 1/4” to 2”, ISO 5211 pad and square stem, pressure rating to 1000psi (1/4” to 1”), 800 psi (1-1/4” to 2”), temperature range -4°F to 450°F, blow-out proof stem, self adjusting stem packing, and 100% electronically tested in the open and closed position @ 80 Psi.

The actuator's specifications include hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating: 80 psi, maximum air pressure rating: 116 psi, working temperature: -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.

Assembly Description

BONOMI 8P0143 WITH SERIES 956N, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 1" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0143 WITH SERIES 956N, 2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 1" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0145 WITH SERIES 956N, 2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 450 °F
Pressure Rating

1000 PSI
Valve Body Configuration

3-WAY "T" PORT
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
