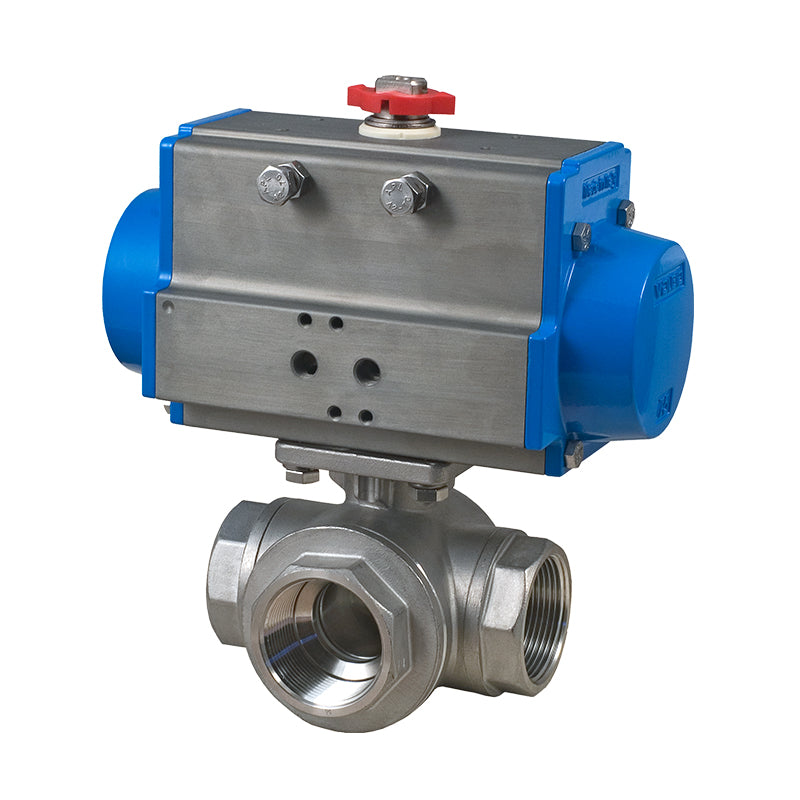

BONOMI SERIES 965N 3-WAY STANDARD L-PORT ST. ST. BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

Introducing the BONOMI SERIES 965N 3-WAY FULL L-PORT ST. ST. BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR. This assembly is perfect for water, gas, and oil applications. It features a CF8M stainless steel body, standard L-Port, sizes 1/2” to 3”, ISO 5211 pad and square stem, pressure rating to 1000psi (1/2” to 1-1/4”), 800 psi (1-1/2” to 3”), temperature range -4°F to 450°F, blow-out proof stem, self adjusting stem packing, and 100% electronically tested in the open and closed position @ 80 Psi.

The Valbia Pneumatic Actuator is made with a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating: 80 psi, maximum air pressure rating: 116 psi, working temperature: -4°F - 302°F, and no lubrication maintenance required for the entire actuator lifetime. It is 100% factory tested.

For a reliable and stylish solution, look no further than the BONOMI SERIES 965N 3-Way Full L-Port ST. ST. Body NPT Ball Valve and Valbia Pneumatic Actuator. Visit bonomivalves.com to learn more.
