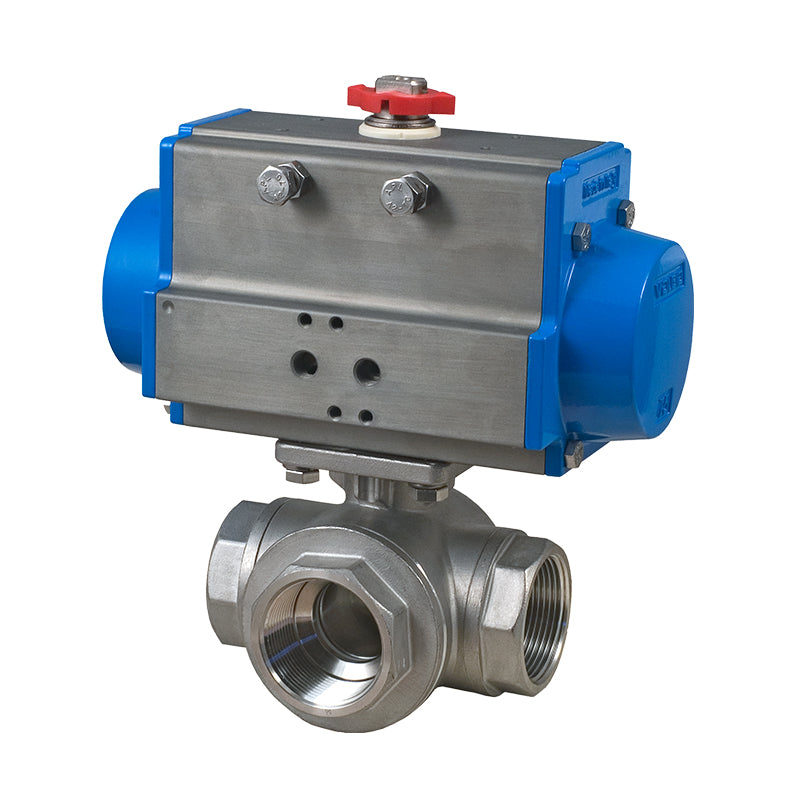

BONOMI SERIES 966N 3-WAY FULL L-PORT ST. ST. BODY NPT BALL VALVE AND V

Introducing the BONOMI SERIES 966N 3-WAY FULL L-PORT ST. ST. BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR from Bonomi Valves. This stylish and attractive assembly is perfect for water, gas, and oil applications.

The valve's specifications include CF8M stainless steel, full L-port sizes from 1/4' to 2', ISO 5211 pad and square stem, pressure rating up to 1000psi (1/4' to 1') and 800psi (1-1/4' to 2'), temperature range from -4°F to 450°F, blow-out proof stem, and self-adjusting stem packing.

The actuator's specifications include hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80psi, maximum air pressure rating of 116psi, working temperature of -4°F to 302°F, and no lubrication maintenance required for the entire actuator lifetime.

Experience the quality and style of the BONOMI SERIES 966N 3-WAY FULL L-PORT ST. ST. BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR from Bonomi Valves today!

Assembly Description

BONOMI 8P0144 WITH SERIES 966N, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 1" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0144 WITH SERIES 966N, 2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 3/8" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V/04 SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 3/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 1" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI 8P0146 WITH SERIES 966N, 2" NPT, DIRECT MOUNT, ST. ST. BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR125V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 450 °F
Pressure Rating

1000 PSI
Valve Body Configuration

3-WAY "L" PORT
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
