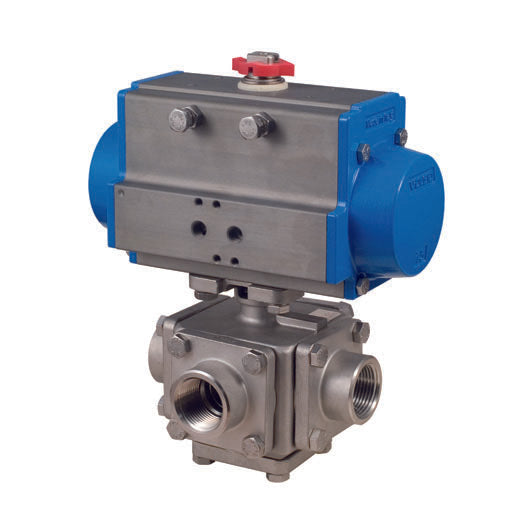

BONOMI SERIES 97L 3-WAY FULL L-PORT ST. ST. BLOCK BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

The BONOMI SERIES 97L 3-WAY FULL L-PORT ST. ST. BLOCK BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly that combines a direct mount L-ported 3-way stainless steel block body ball valve with NPT ends and a pneumatic actuator. It is suitable for water, gas, and oil applications, and is available in sizes from 1/2” to 4”. The valve has a pressure rating of 1000 psi for 1/2” to 1”, 800 psi for 1-1/2” to 2”, 600 psi for 2-1/2” to 3”, and 300 psi for 4”. It has a temperature range of -4°F to 366°F, live loaded stem packing, R.P.T.F.E. seats and seals, and all stainless steel external components. The actuator has a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi. It has a working temperature of -4°F to 302°F and requires no lubrication maintenance for its entire lifetime. It is 100% factory tested.
