BONOMI SERIES 97L-STC 3-WAY FULL L-PORT ST. ST. BLOCK BODY SANITARY CO

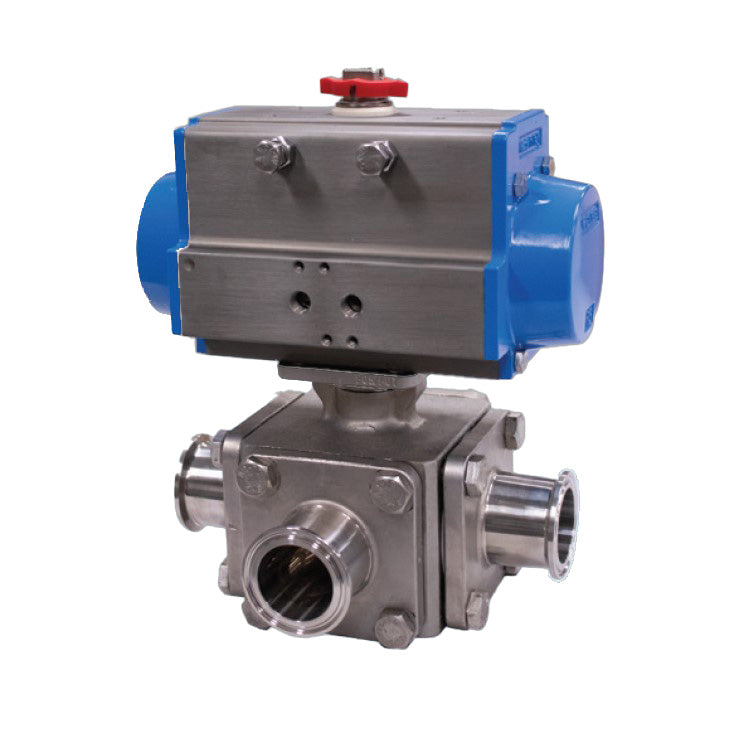

The BONOMI SERIES 97L-STC 3-WAY FULL L-PORT ST. ST. BLOCK BODY SANITARY CONNECTION BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of a direct mount L-ported 3-way, stainless steel block body ball valve with sanitary tri-clamp ends and pneumatic actuator. It is suitable for water, gas, and oil applications.

The valve's specifications include a cavity-filled stainless steel body with sanitary tri-clamp ends, full port sizes from 1/2” to 4”, pressure rating from 1/2” to 1” - 1000 psi, 1-1/2” to 2” - 800 psi, 2-1/2” to 3” - 600psi, 4” - 300 psi, temperature range -4°F to 366°F, live loaded stem packing, R.P.T.F.E. seats & seals, and all stainless steel external components with an ISO 5211 mounting pad with square stem.

The actuator's specifications include a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.

Assembly Description

BONOMI DA97L-STC WITH SERIES 97L-STC, 1/2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 3/4" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 1" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 1-1/2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 2-1/2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 3" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97L-STC WITH SERIES 97L-STC, 4" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 1/2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 3/4" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 1" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 1-1/2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 2-1/2" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 3" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97L-STC WITH SERIES 97L-STC, 4" SANITARY CONNECTION, CAVITY FILLED, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL L-PORT, 3-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 366 °F
Pressure Rating

1000 PSI
Valve Body Configuration

3-WAY "L" PORT
Valve Connection Type

Sanitary Tri-Clamp Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
