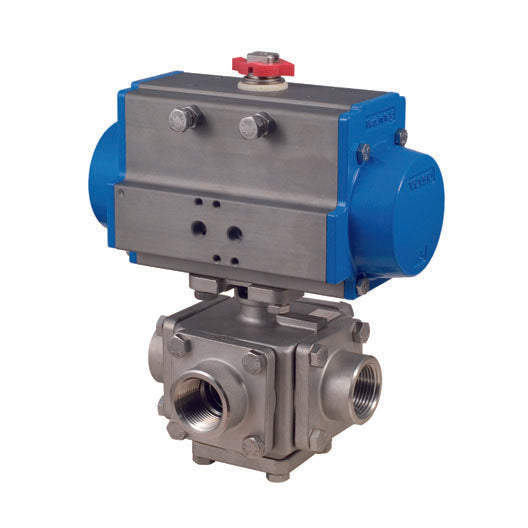

BONOMI SERIES 97T 3-WAY FULL T-PORT ST. ST. BLOCK BODY NPT BALL VALVE

The BONOMI SERIES 97T 3-WAY FULL T-PORT ST. ST. BLOCK BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly of direct mount T-ported 3-way, stainless steel block body ball valve with NPT ends and pneumatic actuator. It is suitable for water, gas and oil applications.

The valve's specifications include cavity-filled stainless steel, NPT threaded, full port sizes from 1/2” to 4”, pressure rating from 1/2” to 1” - 1000 psi, 1-1/2” to 2” - 800 psi, 2-1/2” to 3” - 600psi, 4” - 300 psi, temperature range -4°F to 366°F, live loaded stem packing, R.P.T.F.E. seats & seals, and all stainless steel external components. It also has an ISO 5211 mounting pad with square stem.

The actuator's specifications include hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.

Assembly Description

BONOMI DA97T WITH SERIES 97T, 1/2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 3/4" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 1" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 3" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T WITH SERIES 97T, 4" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 1/2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 3/4" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 1" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 1-1/4" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 1-1/2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR100V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 2-1/2" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 3" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T WITH SERIES 97T, 4" NPT, DIRECT MOUNT, ST. ST. BLOCK BODY, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 366 °F
Pressure Rating

1000 PSI
Valve Body Configuration

3-WAY "T" PORT
Valve Connection Type

FNPT
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
