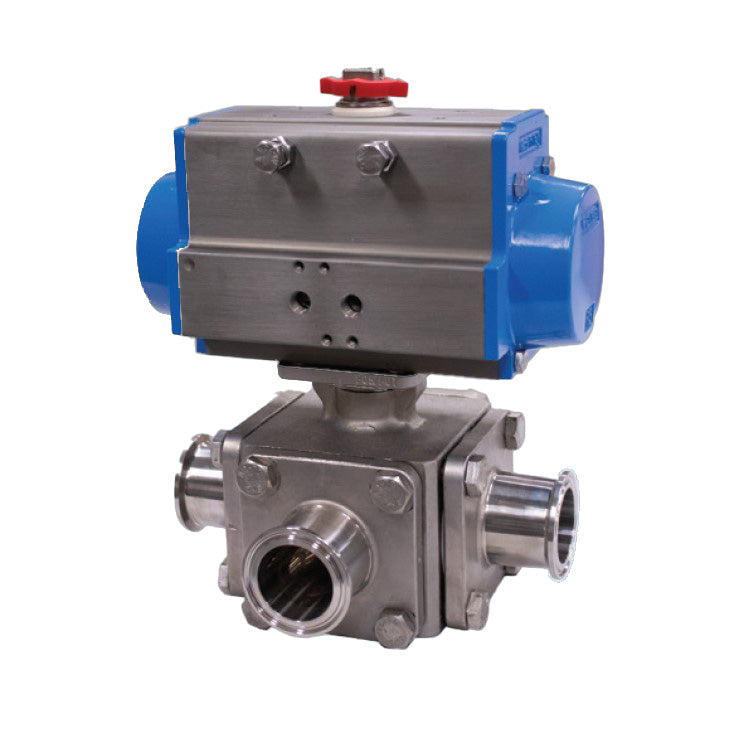

BONOMI SERIES 97T-STC 3-WAY FULL T-PORT ST. ST. BLOCK BODY SANITARY CONNECTION BALL VALVE AND VALBIA PNEUMATIC ACTUATOR

Introducing the BONOMI SERIES 97T-STC 3-WAY FULL T-PORT ST. ST. BLOCK BODY SANITARY CONNECTION BALL VALVE AND VALBIA PNEUMATIC ACTUATOR from Bonomi Valves. This stylish and attractive assembly is perfect for water, gas, and oil applications. It features a cavity-filled stainless steel body with sanitary tri-clamp ends, full port sizes from 1/2” to 4”, and pressure ratings from 1000 psi to 300 psi. The temperature range is -4°F to 366°F, and it has live loaded stem packing and R.P.T.F.E. seats and seals.

The pneumatic actuator is made of hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion, 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, and more. It has a minimum air pressure rating of 80 psi and a maximum air pressure rating of 116 psi, and it can work in temperatures from -4°F to 302°F. Plus, no lubrication maintenance is required for the entire actuator lifetime, and it is 100% factory tested.

For a stylish and attractive e-commerce store, look no further than the BONOMI SERIES 97T-STC 3-WAY FULL T-PORT ST. ST. BLOCK BODY SANITARY CONNECTION BALL VALVE AND VALBIA PNEUMATIC ACTUATOR from Bonomi Valves.
