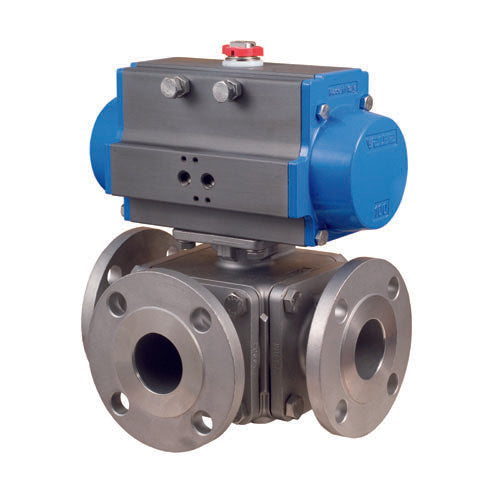

BONOMI SERIES 97T150 3-WAY FULL T-PORT ST. ST. BLOCK BODY ANSI CLASS 1

Discover BONOMI SERIES 97T150 3-WAY FULL T-PORT ST. ST. BLOCK BODY ANSI CLASS 150 FLANGED BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is our unique top-quality Direct Mount T-Ported 3-Way ANSI 150 Stainless Steel Block Body Ball Valve with Flanged Ends and Pneumatic Actuator. Ideal for Water, Gas, and Oil applications, this valve boasts impressive specifications: Stainless Steel ANSI 150 Flanged construction, full port design (sizes 1/2” to 6”), and a pressure rating ranging from 1000 psi to 300 psi across different sizes. With a temperature range of -4°F to 366°F, R.P.T.F.E. seats & seals, and an ISO 5211 mounting pad, this valve is a powerhouse.

Paired with this valve is a high-performance Actuator featuring a hard anodized extruded aluminum body, concentric spring sets, and die-cast aluminum end caps. The solid steel barstock pinion ensures stability and precision (0°-90° rotation adjustment), while the POM piston guides guarantee smooth operation. Operating between -4°F to 302°F, this actuator requires no lubrication maintenance throughout its lifetime and comes 100% factory tested.

Choose reliability and efficiency for your industrial needs with our Assembly, built to excel in the most demanding environments.

Assembly Description

BONOMI DA97T150 WITH SERIES 97T150, 1/2", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA52V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 3/4", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA63V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 1", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA75V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 1.5", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA85V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 2", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA100V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 2-1/2", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 3", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA115V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 4", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA140V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI DA97T150 WITH SERIES 97T150, 6", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA DA160V DOUBLE ACTING PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 1/2", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR63V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 3/4", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR75V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 1", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR85V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 1.5", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR115V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 2", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR140V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 2-1/2", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 3", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR160V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 4", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR180V SPRING RETURN PNEUMATIC ACTUATOR
BONOMI SR97T150 WITH SERIES 97T150, 6", DIRECT MOUNT, ST. ST. BLOCK BODY, ANSI CLASS 150 FLANGED, FULL T-PORT, 3-WAY BALL VALVE AND VALBIA SR230V SPRING RETURN PNEUMATIC ACTUATOR
Data Sheet

Download
Valve Type

BALL VALVE
Temperature Rating

-20 °F to 366 °F
Pressure Rating

1000 PSI
Valve Body Type

BLOCK BODY
Valve Body Configuration

3-WAY "T" PORT
Valve Connection Type

ANSI 150 Flanged Ends
Body Material

STAINLESS STEEL
Actuator Housing Material

Hard Anodized Aluminum
