BONOMI SERIES 97X 3-WAY FULL DOUBLE L-PORT ST. ST. BLOCK BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 97X 3-WAY FULL DOUBLE L-PORT ST. ST. BLOCK BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1/2" NPT / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 97X 3-WAY FULL DOUBLE L-PORT ST. ST. BLOCK BODY NPT B...

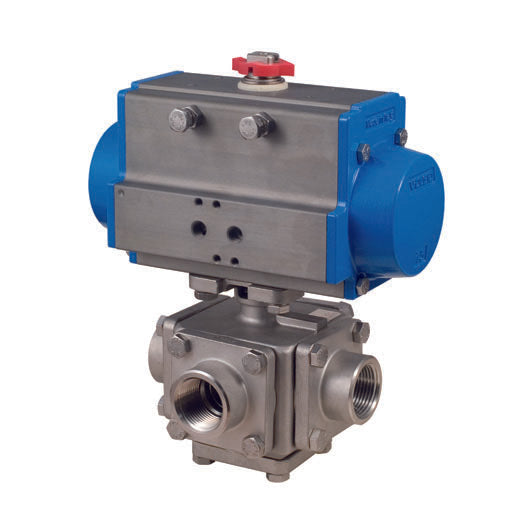

The BONOMI SERIES 97X 3-WAY FULL DOUBLE L-PORT ST. ST. BLOCK BODY NPT BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an assembly of direct mount L-ported 3-way, stainless steel block body ball valve with NPT ends and pneumatic actuator. It is suitable for water, gas, and oil applications.
The valve's specifications include cavity-filled, stainless steel, NPT threaded; full port, sizes 1/2” to 4”; pressure rating 1/2” to 1” - 1000 psi, 1-1/2” to 2” - 800 psi, 2-1/2” to 3” - 600psi, 4” - 300 psi; temperature range -4°F to 366°F; live loaded stem packing; R.P.T.F.E. seats & seals; all stainless steel external components; ISO 5211 mounting pad with square stem.
The actuator's specifications include hard anodized extruded aluminum body; concentric spring sets; die cast aluminum end caps; solid steel barstock pinion (not casting); 0°-90° rotation adjustment cam; 0°-90° rotation adjustment bolts; POM piston guides; minimum air pressure rating: 80 psi; maximum air pressure rating: 116 psi; working temperature: -4°F - 302°F; no lubrication maintenance required for the entire actuator lifetime; 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
