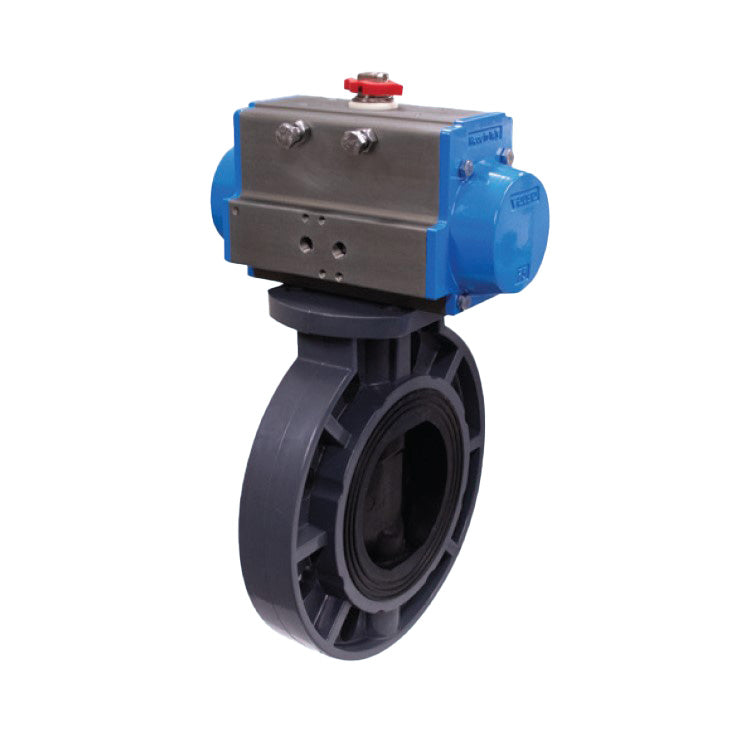

BONOMI SERIES PVCBFVV FKM (VITON) SEATS PVC BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR

Introducing BONOMI SERIES PVCBFVV FKM (VITON) SEATS PVC BUTTERFLY VALVE AND VALBIA PNEUMATIC ACTUATOR the Direct Mount PVC Butterfly Valve with Viton Seats and Pneumatic Actuator - a product that stands out with its unparalleled uniqueness and exceptional performance. Designed for a wide range of applications including water, gas, oil, and chemicals, this valve boasts a host of remarkable specifications that set it apart from the competition. Crafted with a corrosion-resistant thermoplastic body and disc, the valve ensures longevity in the most demanding environments. Its compact and lightweight design not only simplifies installation but also enhances operational efficiency.

One of the key distinguishing features lies in its full boot seal, guaranteeing enduring performance and eliminating the need for flange gaskets. The valve boasts an ANSI B16.5 Class 150 Flanged standard and adheres to the ISO 5211 mounting pattern for effortless integration with actuator or gear operators. With a robust 100% bubble-tight seal and standard Viton seats, the valve delivers peace of mind and reliable performance every time.

Accompanying this exceptional valve is the equally impressive pneumatic actuator. Crafted with hard-anodized extruded aluminum body and die-cast aluminum end caps, the actuator ensures durability and longevity. Its solid steel barstock pinion, along with concentric spring sets, guarantees smooth and precise 0°-90° rotation adjustment. Additionally, the actuator requires no lubrication maintenance throughout its lifetime, further enhancing its uniqueness and ease of use. With a wide working temperature range of -4°F to 302°F and a maximum air pressure rating of 116 psi, this pneumatic actuator is ready to conquer the most challenging tasks. 100% factory tested for quality assurance, the Direct Mount PVC Butterfly Valve with Viton Seats and Pneumatic Actuator stands tall as an exceptional choice for those seeking unparalleled performance and reliability in a single package.
