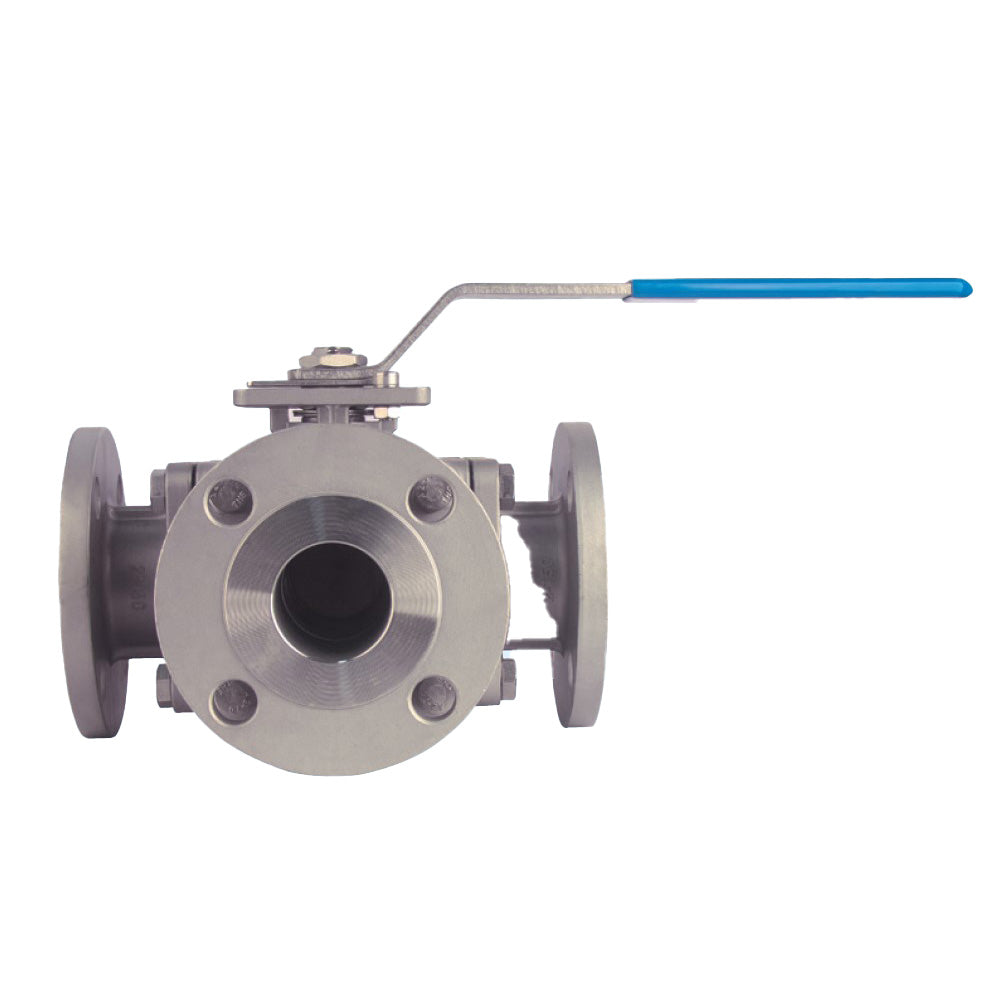

BONOMI SERIES 97T150 3-WAY CAVITY-FILLED, ANSI 150 DIRECT MOUNT T-PORTED STAINLESS STEEL BALL VALVE
BONOMI SERIES 97T150 3-WAY CAVITY-FILLED, ANSI 150 DIRECT MOUNT T-PORTED STAINLESS STEEL BALL VALVE - 3/4" ANSI 150 Flanged Ends
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 97T150 3-WAY CAVITY-FILLED, ANSI 150 DIRECT MOUNT T-P...
Stainless Steel ANSI 150 Flanged; Full port, sizes 1/2” to 6”; Pressure rating 1/2” to 1” - 1000 psi, 1-1/2” to 2” - 800 psi, 2-1/2” to 3” - 600psi, 4”-6" - 300 psi; Temperature range -4°F to 366°F; Live loaded stem packing; R.P.T.F.E. seats & seals; All stainless steel external components; ISO 5211 mounting pad with square stem
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
