BONOMI  |  SKU: 8E864-002-1/4

BONOMI 8E864 WITH SERIES 250N 2-WAY BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

$26792 USD $34731
Shipping calculated at checkout.
Size
Voltage
Actuator Action

BONOMI 8E864 WITH SERIES 250N 2-WAY BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR - 1/4" NPT / 24V AC/DC / ON/OFF FAIL IN PLACE

Shipping Weight:
2.46 lb

Delivery and Shipping

Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.

Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.

We will notify you if lead time is extended.

Contact us if you have any questions.

Please contact us if you need assistance selecting your valve assembly.

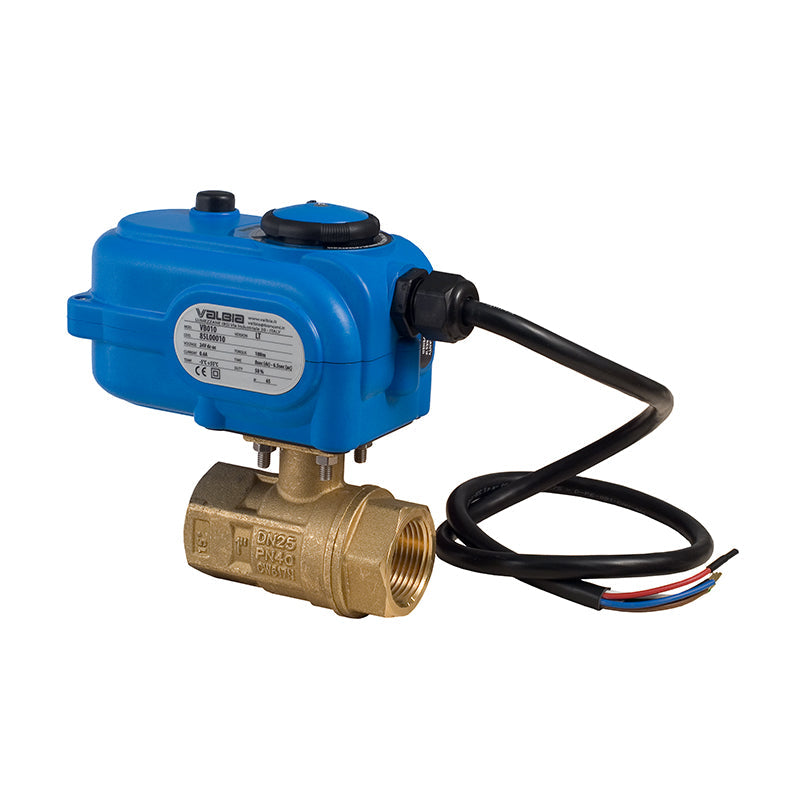

Introducing the BONOMI 8E864 with Series 250N 2-Way Brass NPT Ball Valve and Plastic Valbia Electric Actuator. This assembly is designed for direct mount applications and is suitable for non-potable water, gas, and oil.

The valve features a brass body, full port, and sizes from 1/4” to 4”. It has an ISO 5211 pad and square stem, and a pressure rating of up to 600 WOG. It also has a low torque design with a back up O-ring and a double O-ring stem seal design for extended cycle life. It is 100% electronically tested in the open and closed position at 80psi.

The actuator is available in 24V AC/DC and 100-240V AC models. It has a 120VAC - 75% duty cycle with 8 sec. cycle time and a 24V AC/DC - 50% duty cycle with 6.5 sec. cycle time. It has a high-strength, impact resistant IP65 Technopolymer housing, one auxiliary SDPT contact on closed, and a temperature range of 23°F to 131°F. It also has an ISO 5211, F03/F05 base with 11mm female drive, an anti-condensation heater, and a quiet operation with an LED light in the open position. The output torque is 89 in. lbs. and 30.
