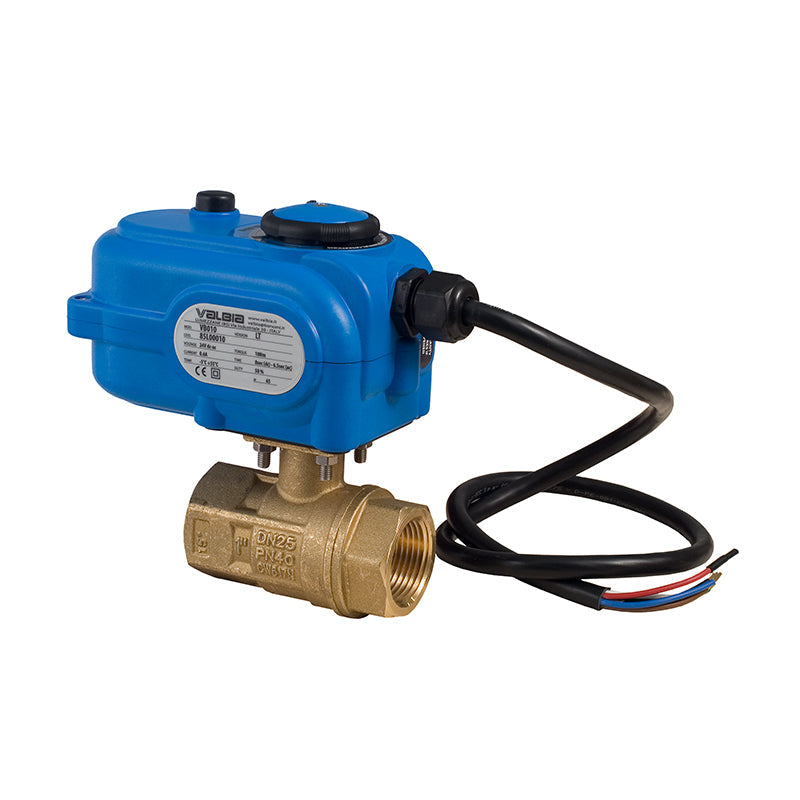

BONOMI 8E864 WITH SERIES 250N 2-WAY BRASS NPT BALL VALVE AND PLASTIC VALBIA ELECTRIC ACTUATOR

Introducing the BONOMI 8E864 with Series 250N 2-Way Brass NPT Ball Valve and Plastic Valbia Electric Actuator. This assembly is designed for direct mount applications and is suitable for non-potable water, gas, and oil.

The valve features a brass body, full port, and sizes from 1/4” to 4”. It has an ISO 5211 pad and square stem, and a pressure rating of up to 600 WOG. It also has a low torque design with a back up O-ring and a double O-ring stem seal design for extended cycle life. It is 100% electronically tested in the open and closed position at 80psi.

The actuator is available in 24V AC/DC and 100-240V AC models. It has a 120VAC - 75% duty cycle with 8 sec. cycle time and a 24V AC/DC - 50% duty cycle with 6.5 sec. cycle time. It has a high-strength, impact resistant IP65 Technopolymer housing, one auxiliary SDPT contact on closed, and a temperature range of 23°F to 131°F. It also has an ISO 5211, F03/F05 base with 11mm female drive, an anti-condensation heater, and a quiet operation with an LED light in the open position. The output torque is 89 in. lbs. and 30.
