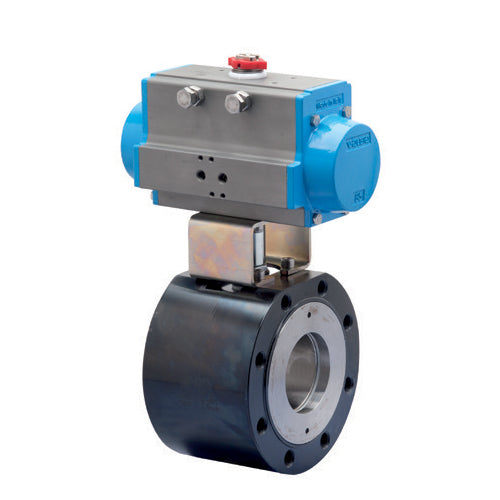

BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR
BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR - 1" ANSI CLASS 150 WAFER STYLE / DOUBLE ACTING
Shipping Weight:
Delivery and Shipping
Delivery and Shipping
Most valves and actuator have a shipping time of 1-7 days + transit time, subject to availability.
Small orders for valve assemblies placed with a UPS Next Day Air or 2nd Day Air shipping via, will ship the same or the following day.
We will notify you if lead time is extended.
Contact us if you have any questions.
BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE ...
The BONOMI SERIES 720791 2-WAY CARBON STEEL ANSI CLASS 150 WAFER STYLE BALL VALVE AND VALBIA PNEUMATIC ACTUATOR is an innovative assembly designed for steam and pneumatic applications. It features a 2-way, ANSI 150 Carbon Steel Wafer-style Flanged Ball Valve with multiple V-stem packing.
The valve's specifications include a carbon steel ANSI 150 full port, sizes 1/2” to 6”, temperature range of -4°F to 366°F, blow out proof stem design, R.P.T.F.E. seats, packing and thrust washer, space saving design, TUV T.A. Luft approved, ANSI B16.34 design, and ISO 5211 mounting pad with double “D” stem.
The actuator's specifications include a hard anodized extruded aluminum body, concentric spring sets, die cast aluminum end caps, solid steel barstock pinion (not casting), 0°-90° rotation adjustment cam, 0°-90° rotation adjustment bolts, POM piston guides, minimum air pressure rating of 80 psi, maximum air pressure rating of 116 psi, working temperature of -4°F - 302°F, no lubrication maintenance required for the entire actuator lifetime, and 100% factory tested.
-
Assembly Description
-
Data Sheet
-
Valve Type
-
Temperature Rating
-
Pressure Rating
-
Valve Body Type
-
Approvals
-
Valve Body Configuration
-
Valve Connection Type
-
Body Material
-
Actuator Housing Material
